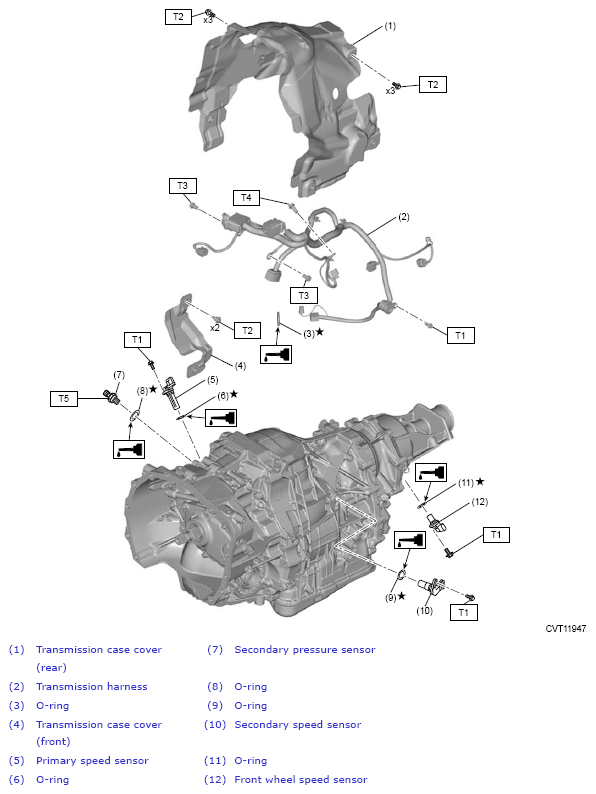

Transmission Harness And Sensor
WARNING: This page is about a different variant/trim than selected.
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 5 (0.5, 3.7)
T2: 8 (0.8, 5.9)
T3: 13 (1.3, 9.6)
T4: 16 (1.6, 11.8)
T5: 39 (4.0, 28.8)
