Oil Pipe

WARNING: This page is about a different variant/trim than selected.

Oil pipe (vacuum pump)

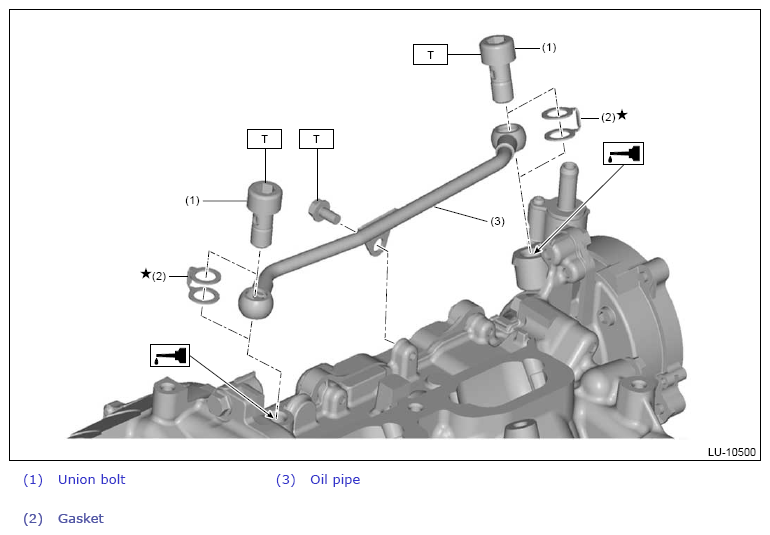

Fig 1: Oil Pipe (Vacuum Pump) Components
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf.m, ft.lb)

T: Ref. to OIL PIPE (VACUUM PUMP) .
Oil pipe (scavenge pump)

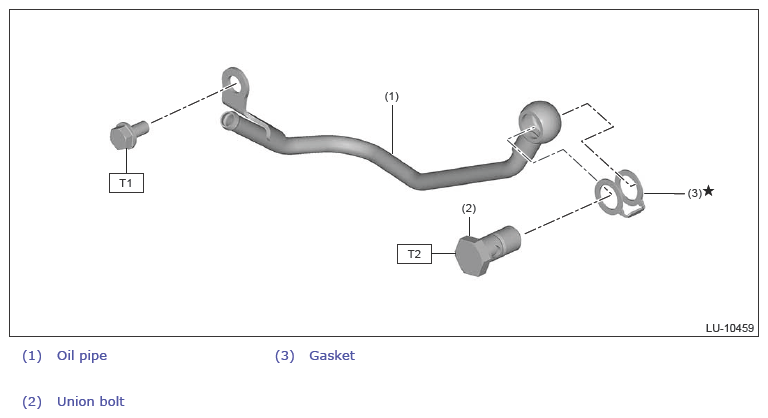

Fig 2: Oil Pipe (Scavenge Pump) Components
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf.m, ft.lb)

T1: 6.4 (0.7, 4.7)

T2: 31.5 (3.2, 23.2)
