When Not Removing The CROSSMEMBER COMPL Front

WARNING: This page is about a different variant/trim than selected.
  1. Remove the striker assembly front hood. Ref. to EXTERIOR BODY PANELS>FRONT HOOD>DISASSEMBLY .
  2. Fully open the panel COMPL front hood Ref. to REPAIR CONTENTS>NOTE>STAY ASSEMBLY FRONT HOOD .
  3. Disconnect the ground terminal from battery sensor Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  4. Drain engine coolant. Ref. to COOLING (H4DOTC)>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  5. Drain the engine oil. Ref. to LUBRICATION (H4DOTC)>ENGINE OIL>REPLACEMENT .

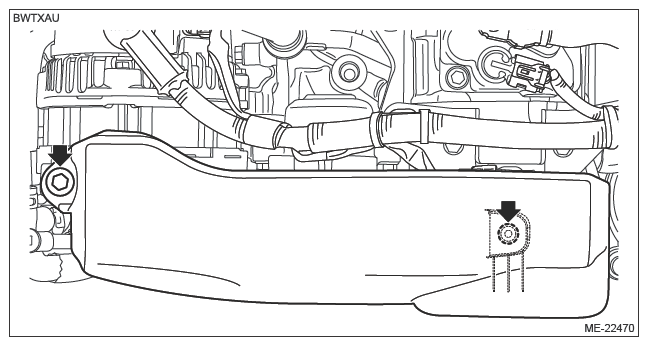

  6. Remove the V-belt covers.
    G13949400Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the air intake duct Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>REMOVAL .
  8. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL .
  9. Remove the front exhaust pipe. Ref. to EXHAUST (H4DOTC)>FRONT EXHAUST PIPE>REMOVAL .

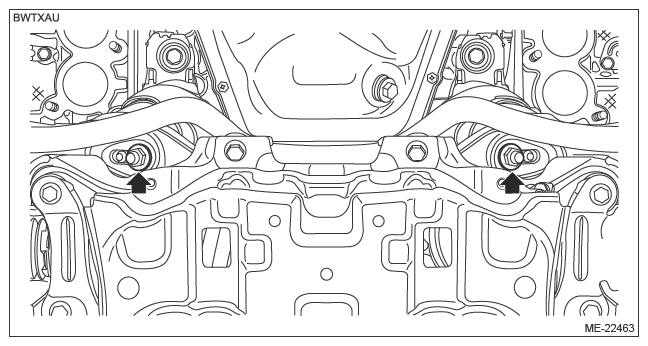

  10. Remove the nuts which secure the engine mounting to the crossmember COMPL front.
    G13949401Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the electric power steering gearbox. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>ELECTRIC POWER STEERING GEARBOX>REMOVAL .
  12. Remove the front drive shaft LH. Ref. to PROPELLER SHAFT/DRIVE SHAFT/AXLE>FRONT DRIVE SHAFT>REMOVAL .
  13. Remove the pitching stopper. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION MOUNTING SYSTEM>REMOVAL>PITCHING STOPPER .

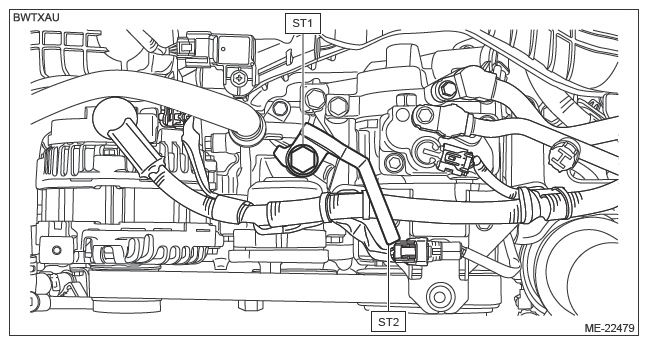

  14. Using the ST1, install the ST2 to the engine unit.

    Preparation tool:

    ST1: BOLT (18363AA050)

    ST2: HANGER (18360AA040)

    Tightening torque:

    43 N.m (4.4 kgf.m, 31.7 ft.1b)

    G13949402Courtesy of SUBARU OF AMERICA, INC.

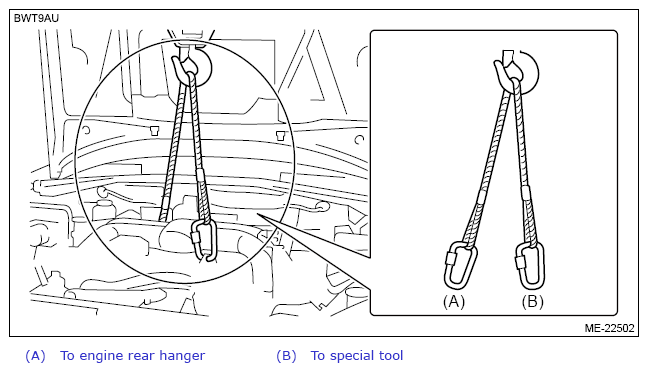

  15. Lift up the engine with a lifting device and wire ropes.
    CAUTION: When lifting up the engine, pay attention to the clearance of each part and be careful not to lift the engine too much, in order to prevent damaging the vehicle.
    G13949403Courtesy of SUBARU OF AMERICA, INC.

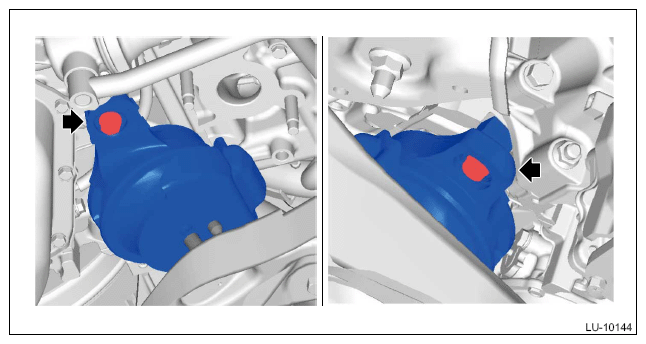

  16. Remove the engine mounting LH.
    G13949404Courtesy of SUBARU OF AMERICA, INC.

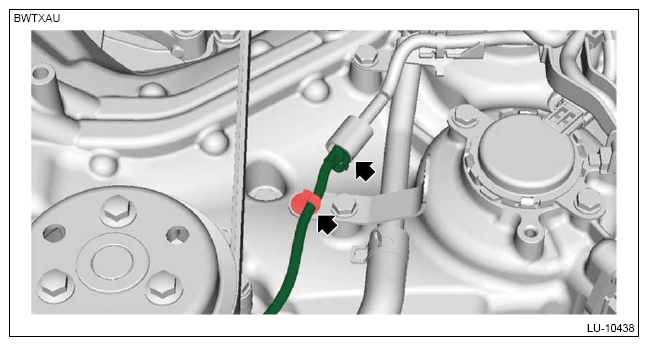

  17. Remove the clip holding the oil level switch harness and disconnect the connectors.
    G13949405Courtesy of SUBARU OF AMERICA, INC.

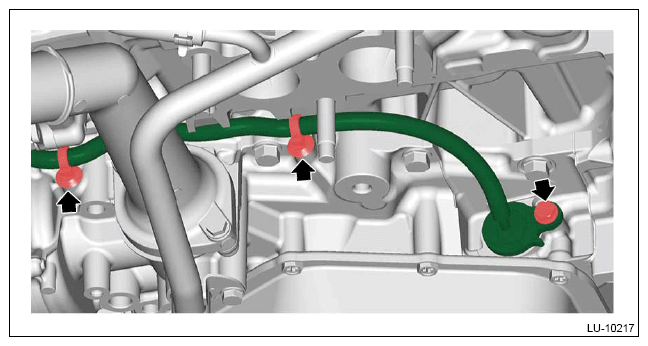

  18. Remove the clip securing the harness, and remove the oil level switch.
    G13949406Courtesy of SUBARU OF AMERICA, INC.
