Radiator Fan Control Module (Sub)

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

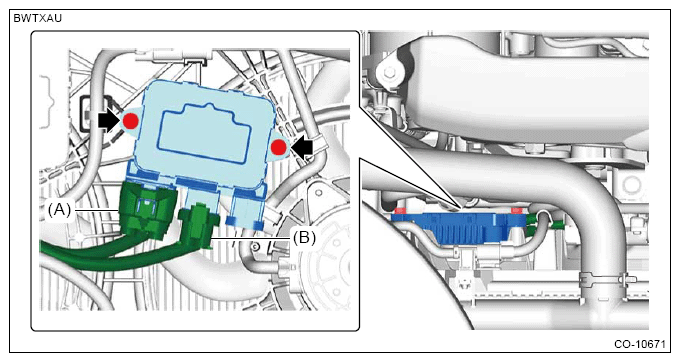

  2. Disconnect the connector (A) and connector (B), and remove the radiator fan control module (sub).
G13949343Courtesy of SUBARU OF AMERICA, INC.
