Passenger's Airbag Module: Removal
CAUTION:
Refer to "CAUTION" of "General Description" before handling the airbag system components. Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
- Turn the ignition switch to OFF.
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY
.NOTE:
- Release the shift lock and shift the select lever to the "N" position. Ref. to CONTROL SYSTEMS>SELECT LEVER>REMOVAL .
- For the power seat model, remove the console box before removing the battery ground terminal.
- Remove the instrument panel assembly. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL ASSEMBLY>REMOVAL .

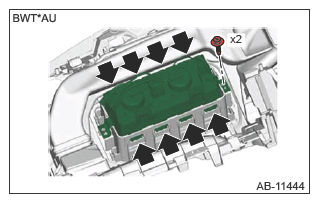

- Remove the tapping screws and release the claws, and remove the passenger's airbag module.
