Electric Fluid Pump: Disassembly

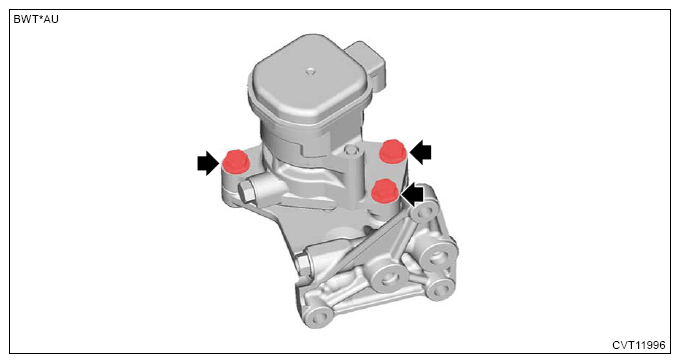

  1. Remove the electric oil pump.
    G13950444Courtesy of SUBARU OF AMERICA, INC.

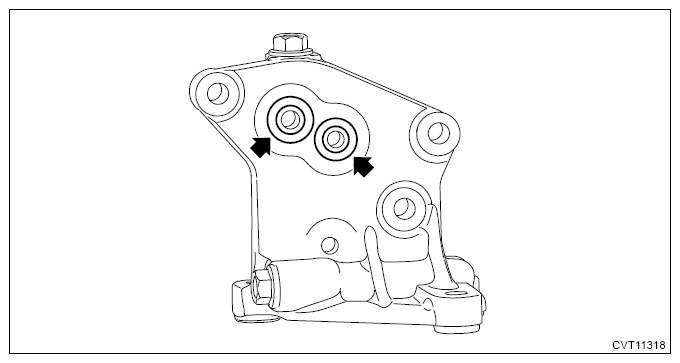

  2. Remove the O-rings.
    G13950445Courtesy of SUBARU OF AMERICA, INC.

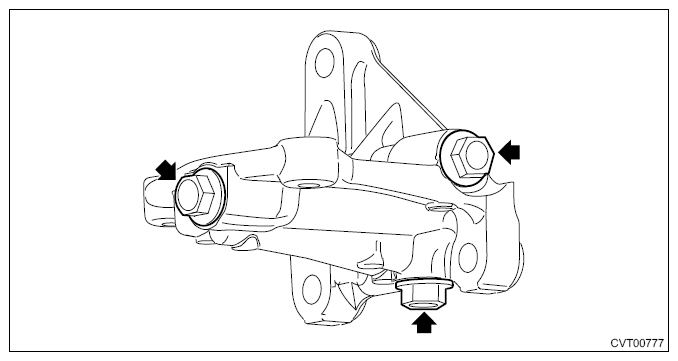

  3. Remove the plug.
    G13950446Courtesy of SUBARU OF AMERICA, INC.
