Air Intake Boot: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the clips, and loosen the clamps.
    G13618350Courtesy of SUBARU OF AMERICA, INC.

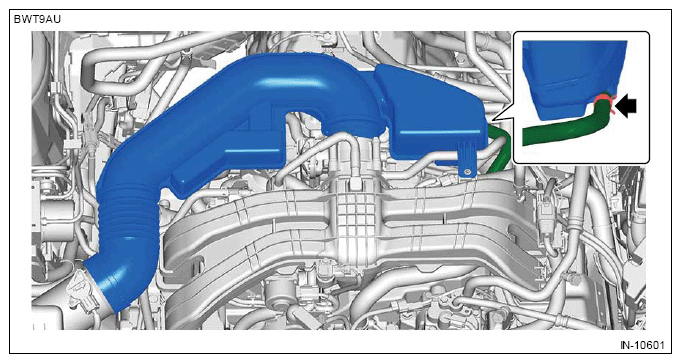

  2. Disconnect the PCV hose and remove the air intake boot.
G13618767Courtesy of SUBARU OF AMERICA, INC.
