Active Grille Shutter

WARNING: This page is about a different variant/trim than selected.

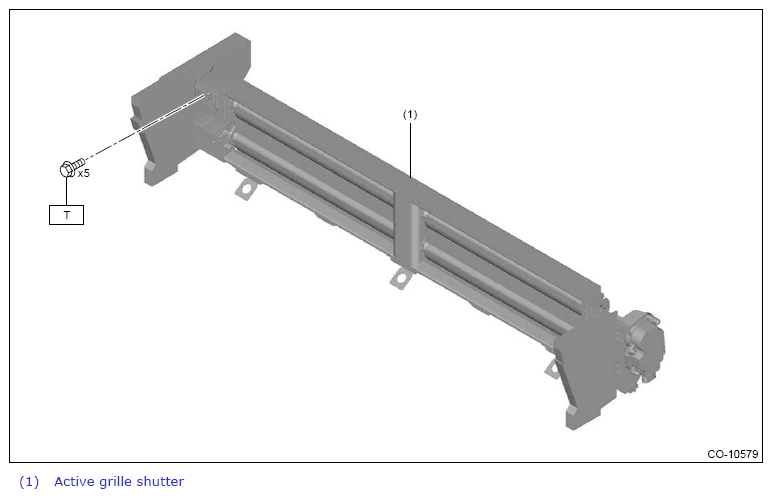

Fig 1: Active Grille Shutter
G13947934Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
