Engine Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the striker assembly front hood. Ref. to EXTERIOR BODY PANELS>FRONT HOOD>DISASSEMBLY .
  2. Fully open the panel COMPL front hood. Ref. to REPAIR CONTENTS>NOTE>STAY ASSEMBLY FRONT HOOD .
  3. Release the fuel pressure. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL>PROCEDURE>RELEASING OF FUEL PRESSURE .
  4. Open the fuel filler lid and remove the fuel filler cap.
    NOTE: This operation is required to release the inner pressure of the fuel tank.
  5. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  6. Collect the refrigerant. Ref. to AIR CONDITIONER>REFRIGERANT RECOVERY PROCEDURE>PROCEDURE .
  7. Remove the radiator. Ref. to COOLING (H4DOTC)>RADIATOR>REMOVAL .
  8. Remove the crossmember support rear RH. Ref. to FRONT SUSPENSION>CROSSMEMBER SUPPORT>REMOVAL .
  9. Remove the intake duct No. 1 and intake duct No. 2.

    Intake duct No. 1:

    Ref. to INTAKE (INDUCTION) (H4DOTC)>INTAKE DUCT>REMOVAL>INTAKE DUCT NO. 1 .

    Intake duct No. 2:

    Ref. to INTAKE (INDUCTION) (H4DOTC)>INTAKE DUCT>REMOVAL>INTAKE DUCT NO. 2 .

  10. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL .

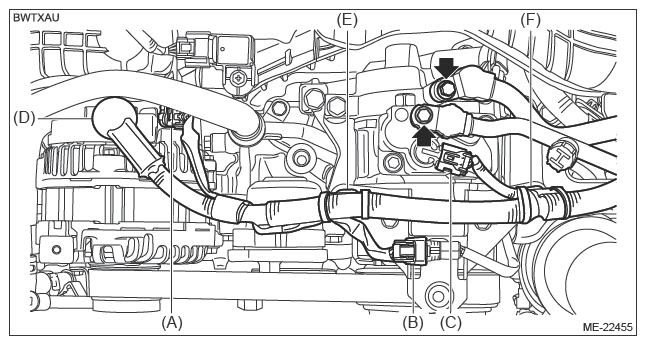

  11. Disconnect the connector (A), connector (B), connector (C) and terminal (D), and remove the clip (E) and clip (F).
  12. Disconnect the hose - pressure suction and the hose - pressure discharge from the A/C compressor. Ref. to AIR CONDITIONER>HOSE AND PIPE>REMOVAL .
    G13948806Courtesy of SUBARU OF AMERICA, INC.

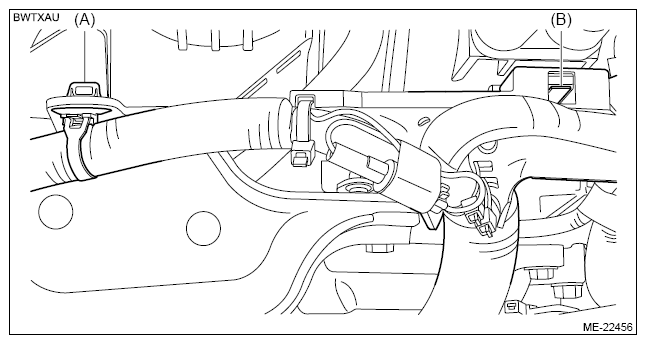

  13. Remove clip (A) securing battery cable assembly.
  14. Remove the claw (B) securing the battery cable assembly, and place it aside so that it does not interfere with work.
    G13948807Courtesy of SUBARU OF AMERICA, INC.

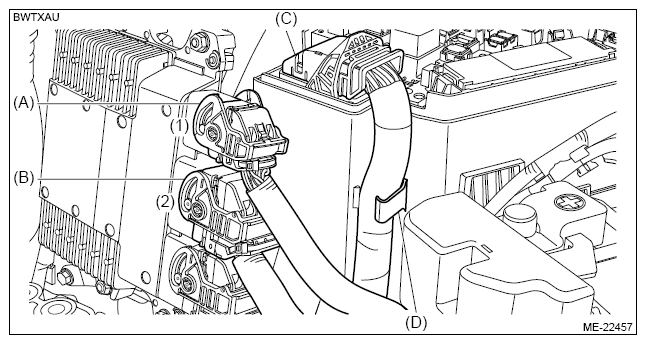

  15. Remove the connector (A) and connector (B) in numerical order shown in figure.
  16. Disconnect the connector (C), and remove the engine wiring harness from the clip (D).
    G13948808Courtesy of SUBARU OF AMERICA, INC.

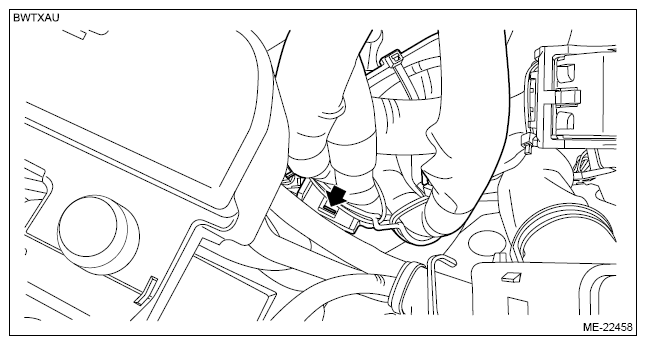

  17. Release the claw securing the engine wiring harness to the bracket, and place it aside so that it does not interfere with work.
    G13948809Courtesy of SUBARU OF AMERICA, INC.

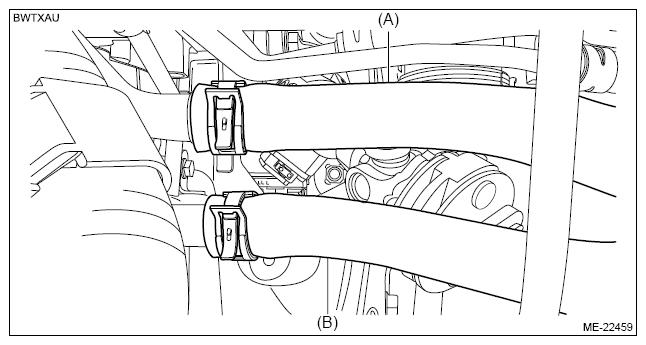

  18. Disconnect the heater inlet hose (A) and the heater outlet hose (B).
    G13948810Courtesy of SUBARU OF AMERICA, INC.

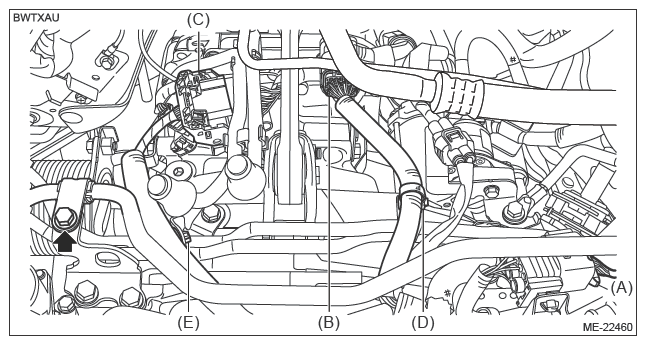

  19. Disconnect the connector (A), connector (B) and connector (C), and remove the clip (D) and clip (E).
  20. Remove the bolts securing the vacuum pipe to the engine rear hanger.
    G13948811Courtesy of SUBARU OF AMERICA, INC.
  21. Remove the pitching stopper. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION MOUNTING SYSTEM>REMOVAL>PITCHING STOPPER .

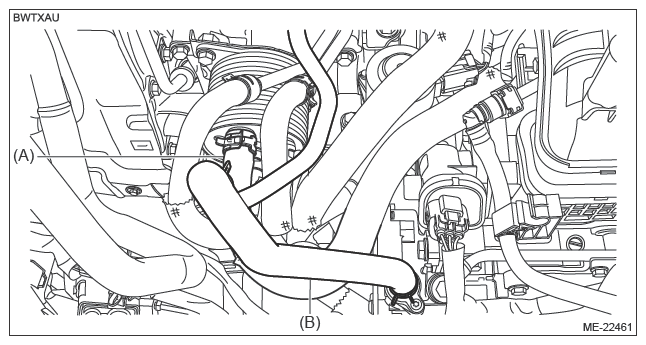

  22. Disconnect the water hose (A) from CVTF cooler (with warmer feature).
  23. Disconnect the brake booster vacuum hose (B) from the brake vacuum pump, and place it aside so that it does not interfere with the work.

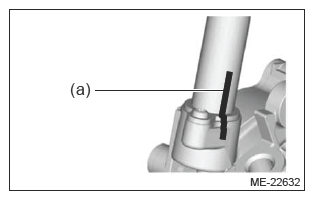

    NOTE: Before disconnecting the brake booster vacuum hose, use a marker to put an alignment mark (a) at the position shown in the figure when the clip is slid.
    G13948812Courtesy of SUBARU OF AMERICA, INC.
    G13948813Courtesy of SUBARU OF AMERICA, INC.
  24. Remove the front exhaust pipe. Ref. to EXHAUST (H4DOTC)>FRONT EXHAUST PIPE>REMOVAL .

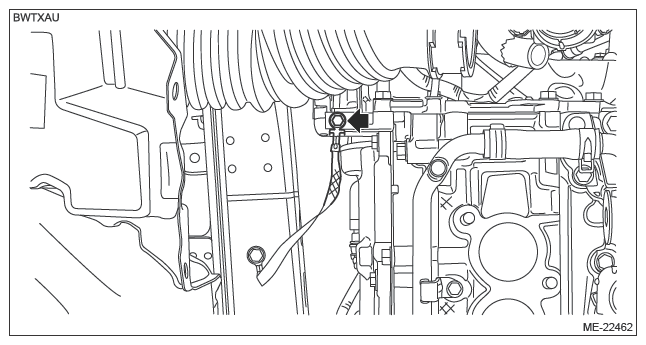

  25. Disconnect the ground cord on the engine unit side.
    G13948814Courtesy of SUBARU OF AMERICA, INC.

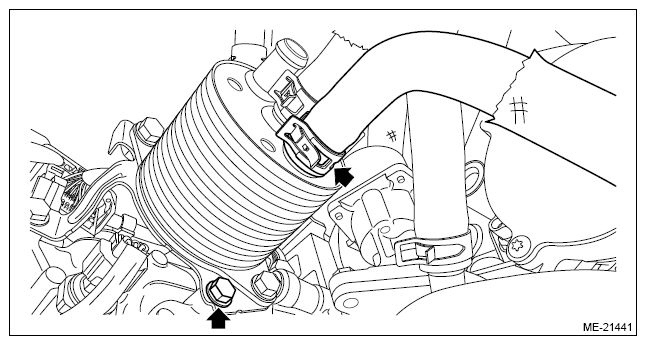

  26. Disconnect the water hose from CVTF cooler (with warmer feature), and remove the lower bolt securing the CVTF cooler (with warmer feature) to the CVT.
    G13948815Courtesy of SUBARU OF AMERICA, INC.

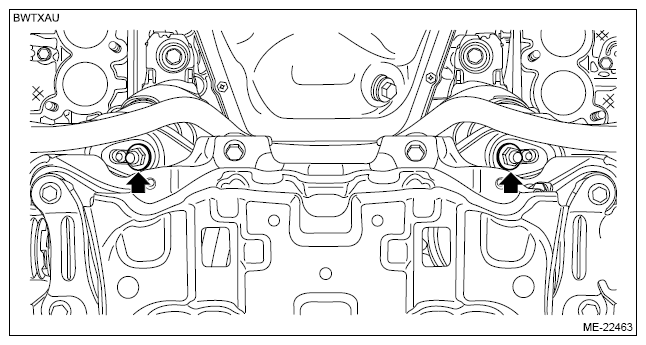

  27. Remove the nuts which secure the engine mounting to the crossmember COMPL front.
    G13948816Courtesy of SUBARU OF AMERICA, INC.
  28. Remove the bolts and nuts which hold the lower side of transmission to the engine unit.
    G13948817Courtesy of SUBARU OF AMERICA, INC.
  29. Lower the vehicle.

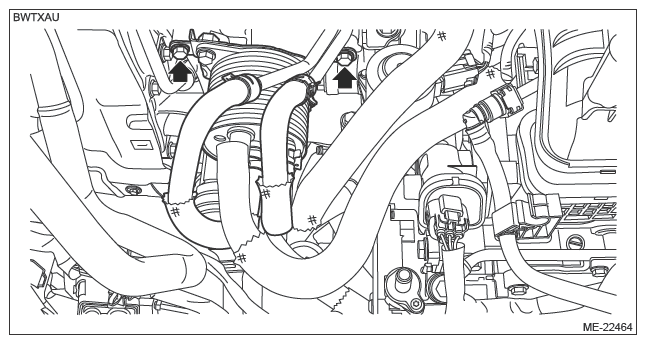

  30. Remove the upper bolt securing the CVTF cooler (with warmer feature) to the CVT, and move the CVTF cooler (with warmer feature) at the locations that do not interfere operation.
    G13948818Courtesy of SUBARU OF AMERICA, INC.
  31. Remove the starter. Ref. to STARTING/CHARGING SYSTEMS (H4DOTC)>STARTER>REMOVAL .
  32. Separate the torque converter from drive plate.

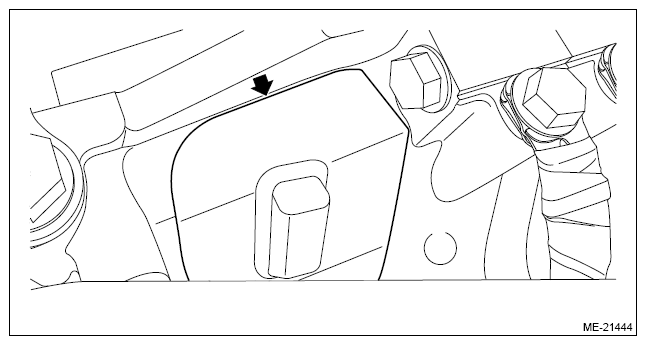

    1. Remove the plug from the service hole.
      G13948819Courtesy of SUBARU OF AMERICA, INC.

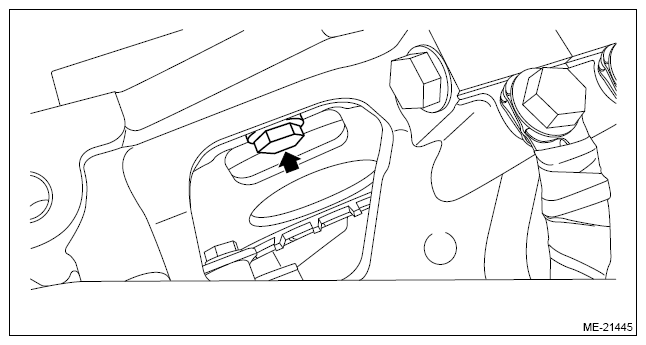

    2. Insert the wrench into the crank pulley bolt, and rotate the crank pulley to remove the bolts (4 places) securing the torque converter to the drive plate.
      G13948820Courtesy of SUBARU OF AMERICA, INC.

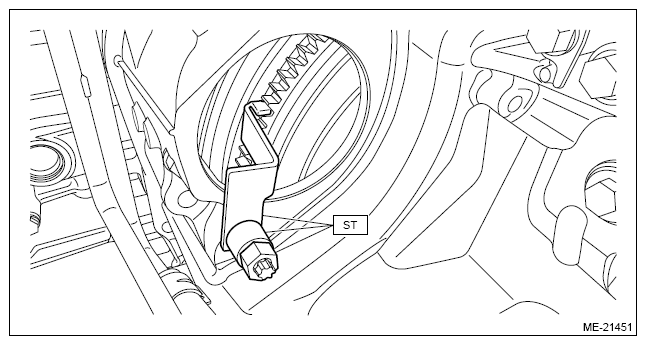

    3. Attach the ST to the converter case.

    Preparation tool:

    ST: STOPPER SET (498277200)

    G13948821Courtesy of SUBARU OF AMERICA, INC.
  33. Disconnect the fuel delivery tube and evaporation hose.
    CAUTION:
    • Be careful not to spill fuel.
    • Catch the fuel from the tubes using a container or cloth.

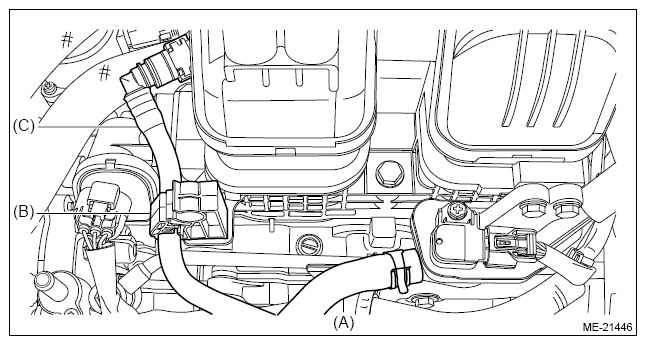

    1. Disconnect the evaporation hose (A) from the vacuum pipe assembly.
    2. Remove the clip (B) from the intake manifold assembly, and disconnect the quick connector of the fuel delivery tube (C) from the fuel pipe.
    NOTE: Disconnect the quick connector as shown in the figure.
    G13948822Courtesy of SUBARU OF AMERICA, INC.
    G13948823Courtesy of SUBARU OF AMERICA, INC.
  34. Separate the engine unit and transmission.
    CAUTION: Before removing the engine unit away from transmission, check to be sure no work has been overlooked.
    1. Using the ST1, install the ST2 to the engine unit.

      Preparation tool:

      ST1: BOLT (18363AA050)

      ST2: HANGER (18360AA040)

      Tightening torque:

      43 N.m (4.4 kgf-m, 31.7 ft-lb)

      G13948824Courtesy of SUBARU OF AMERICA, INC.

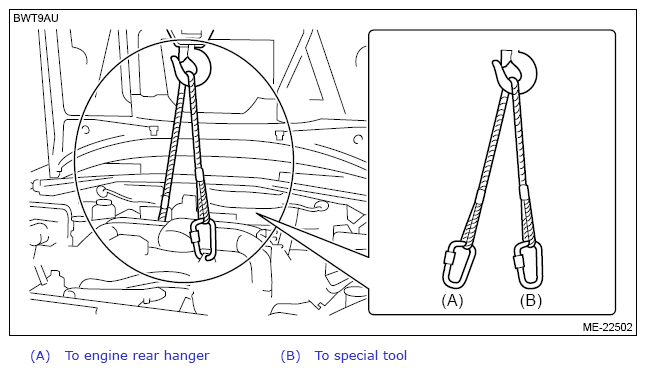

    2. Support the engine unit with a lifting device and wire ropes.
      G13948825Courtesy of SUBARU OF AMERICA, INC.

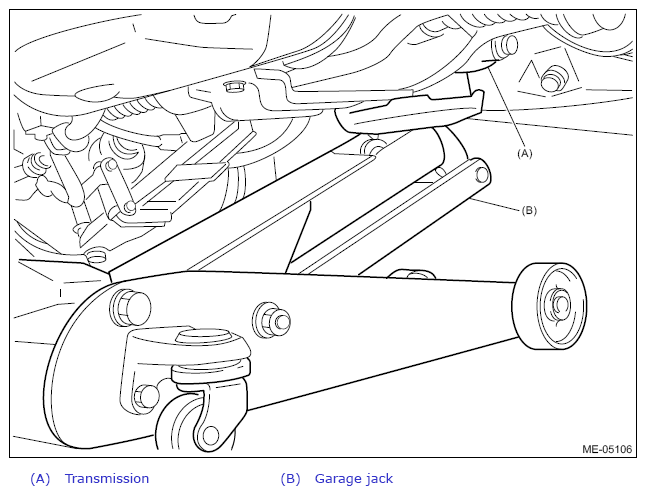

    3. Support the transmission with a garage jack.
      CAUTION: Be sure to perform this procedure to prevent the transmission from lowering by its own weight.
      G13948826Courtesy of SUBARU OF AMERICA, INC.
    4. Remove the bolts which hold the upper side of transmission to the engine unit.
    G13948827Courtesy of SUBARU OF AMERICA, INC.
  35. Remove the engine unit from the vehicle.
    NOTE: Be careful not to damage adjacent parts or body panels with crank pulley, oil level gauge, etc.
    1. Slightly raise the engine unit.
    2. Raise the transmission with garage jack.
    3. Move the engine unit horizontally until the engine unit is withdrawn from transmission.
    4. Slowly move the engine unit away from engine compartment.
  36. Remove the engine mounting from the engine unit.
  37. Set the engine unit on the engine stand, etc. and remove the lifting device and wire ropes. Ref. to MECHANICAL (H4DOTC)>PREPARATION FOR OVERHAUL>PROCEDURE .

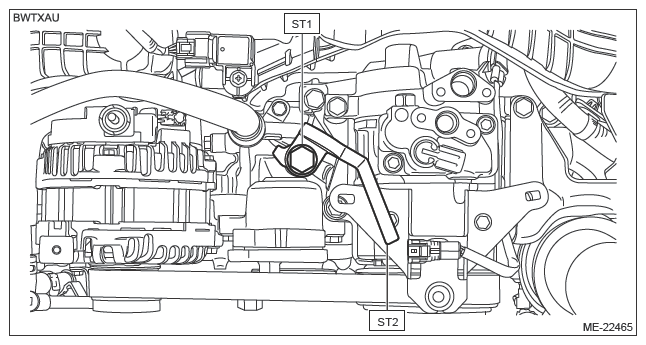

  38. Remove the ST1 and ST2 from the engine unit.
G13948828Courtesy of SUBARU OF AMERICA, INC.
