Entertainment System: Camera: Removal: Front
- Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY
.NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
- Remove the bumper face - front. Refer to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL .

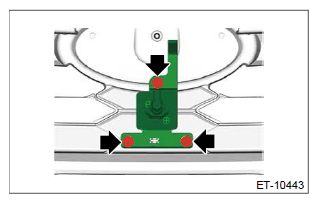

- Remove the screws and remove the front view camera.CAUTION: Do not drop or apply any impact to the front view camera because it is a precision equipment.
