External Connection Terminal: Removal
- Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY
.NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
- Remove the console box assembly. Refer to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .

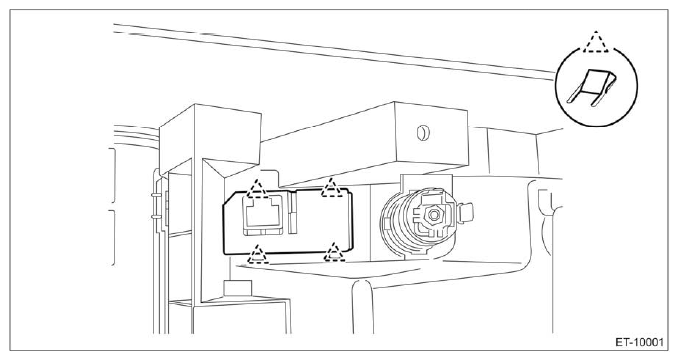

- While pressing the claw, press it in from the rear to remove the unit assembly - AUX.
