Power Window Control Switch: Removal: Sub-Switch

Switch - power window sub front

For removal of the switch - power window sub front on the passenger's seat, refer to the removal procedure of the switch - power window main. Refer to GLASS/WINDOW/MIRRORS>POWER WINDOW CONTROL SWITCH>REMOVAL>MAIN SWITCH .

Switch - power window sub rear

1. Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
   NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
2. Remove the trim panel - rear door. Refer to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>REAR DOOR .
3. Remove the panel - power window sub switch rear.
   CAUTION: Be careful not to damage the trim panel - rear door with the panel - power window sub switch rear.
   1. Insert a sheet of protective paper (a) between panel - power window sub switch rear and trim panel - rear door.
   2. Remove the screws and disconnect the connector.

      Courtesy of SUBARU OF AMERICA, INC.

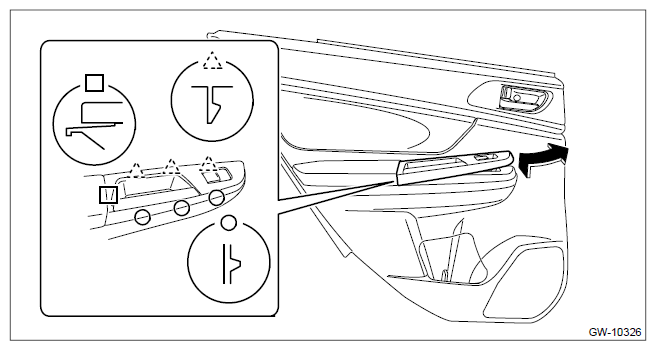

   3. Release the claws, and then remove the panel - power window sub switch rear.

      Courtesy of SUBARU OF AMERICA, INC.

4. Release the claws, and then remove the switch - power window sub rear.

   Courtesy of SUBARU OF AMERICA, INC.
