Combination Meter: Disassembly

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Use gloves to avoid damage and getting fingerprints on the glass surface and meter surfaces.
Be sure not to touch the meter indicator needle.
Because LED components are used for all of warning lights and indicator lights, they are not removable from the combination meter assembly.

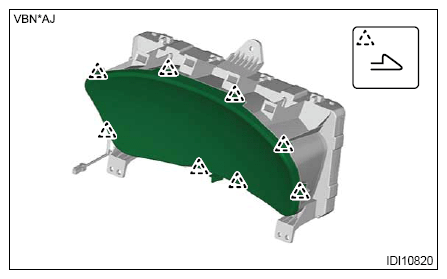

Release the claws, and then remove the glass combination meter.

Courtesy of SUBARU OF AMERICA, INC.
