Driver's Airbag Module: Removal
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Refer to "CAUTION" of "General Description" before handling the airbag system components. Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION
- Set the steering wheel to the straight-ahead position.
- Turn the ignition switch to OFF.
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY

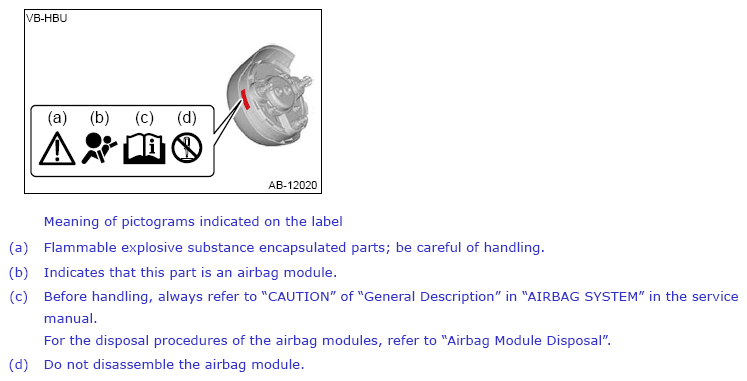

- Remove the driver's airbag module.

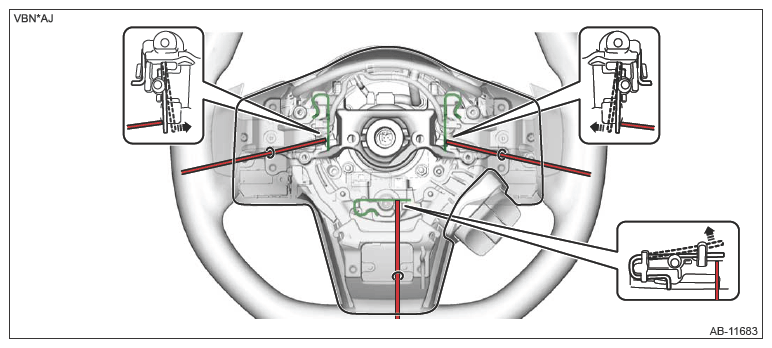

- Using a hexagon wrench etc. wrapped by protective tape, insert the snap pins and release the locks (three locations).

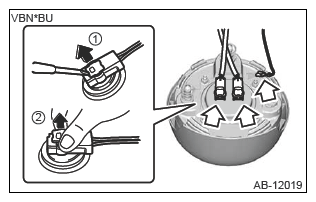

- Disconnect the horn harness and airbag connector, and remove the driver's airbag module. Ref. to AIRBAG SYSTEM>AIRBAG CONNECTOR>PROCEDURE>KNEE AIRBAG MODULE, DRIVER'S AIRBAG MODULE & LAP SEAT BELT PRETENSIONER
- Using a hexagon wrench etc. wrapped by protective tape, insert the snap pins and release the locks (three locations).
