G Sensor: Installation

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

Attach the G sensor to the harness bracket.
Tightening torque:

33 N.m (3.4 kgf-m, 24.3 ft-lb)
Install the harness bracket, and connect the connector.
Tightening torque:

T1: 15 N.m (1.5 kgf-m, 11.1 ft-lb)

T2: 33 N.m (3.4 kgf-m, 24.3 ft-lb)

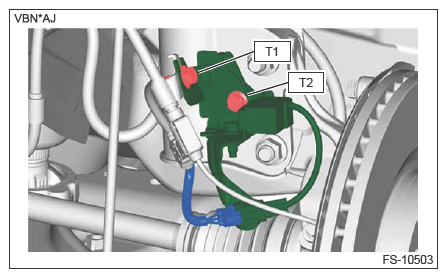

Fig 1: Harness Bracket Bolts (With Torque Specifications)
Courtesy of SUBARU OF AMERICA, INC.
Install the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
