License Plate Light: Inspection
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

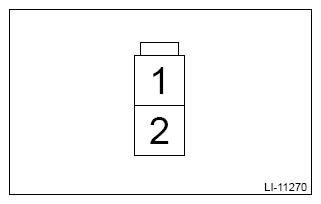

- Apply battery voltage between the connector terminals to check the lighting condition of the light.
Courtesy of SUBARU OF AMERICA, INC.
|
| Terminal No. |
Inspection conditions |
Specification |
| 1 (+) - 2 (-) |
Apply battery voltage. |
Light ON |
- Replace the harness and bulb if it is found defective.
