Cord Assembly

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

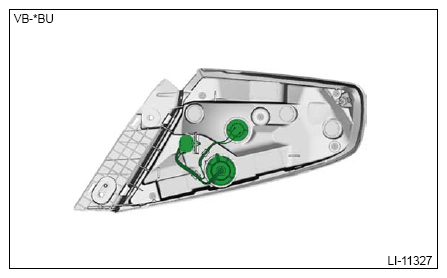

  1. Install the cord assembly as shown in the figure.
    G14612383Courtesy of SUBARU OF AMERICA, INC.
