Components With Torque Specifications: Generator

WARNING: This page is about a different variant/trim than selected.

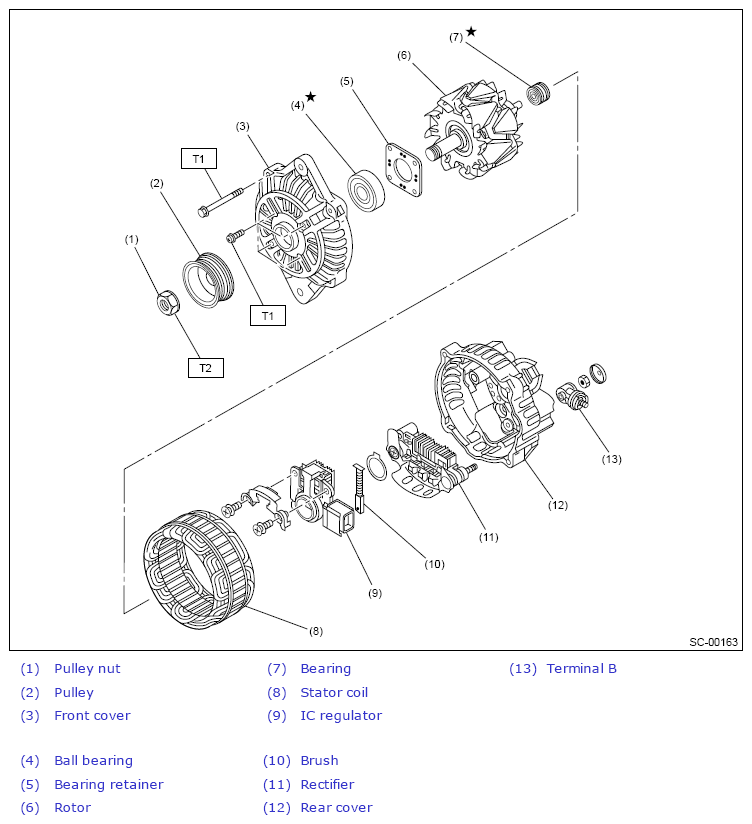

Fig 1: Generator Components (With Torque Specification)

G13640919

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 4.7 (0.5, 3.5)

T2: 108 (11.0, 79.8)
