Section 11 (Engine Cooling System (2.5L)): Radiator: Installation

WARNING: This page is about a different variant/trim than selected.

Attach the radiator lower cushion to the radiator lower bracket.

Courtesy of SUBARU OF AMERICA, INC.
Install the radiator to vehicle.
NOTE: Make pins on the lower side of radiator be fitted into the radiator lower cushions.
Install the radiator upper brackets.
Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

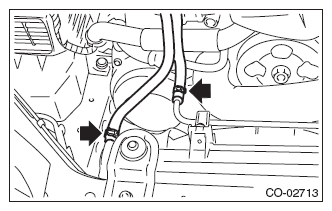

Connect the two engine coolant hoses to the radiator and over flow pipe.

Courtesy of SUBARU OF AMERICA, INC.

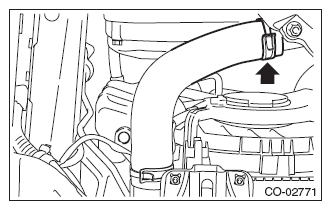

Connect the radiator inlet hose.

Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Connect the radiator outlet hose.

Courtesy of SUBARU OF AMERICA, INC.
Connect the connector (A) to the main fan motor and the connector (B) to the sub fan motor.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
Install the under cover. Refer to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>INSTALLATION .
Lower the vehicle.
Install the reservoir tank. Refer to COOLING(STI)>RESERVOIR TANK>INSTALLATION .
Install the air intake duct. Refer to INTAKE (INDUCTION) (STI)>AIR INTAKE DUCT>INSTALLATION .
Connect the battery ground terminal.
Fill engine coolant. Refer to COOLING(STI)>ENGINE COOLANT>REPLACEMENT>FILLING OF ENGINE COOLANT .
