Timing Belt

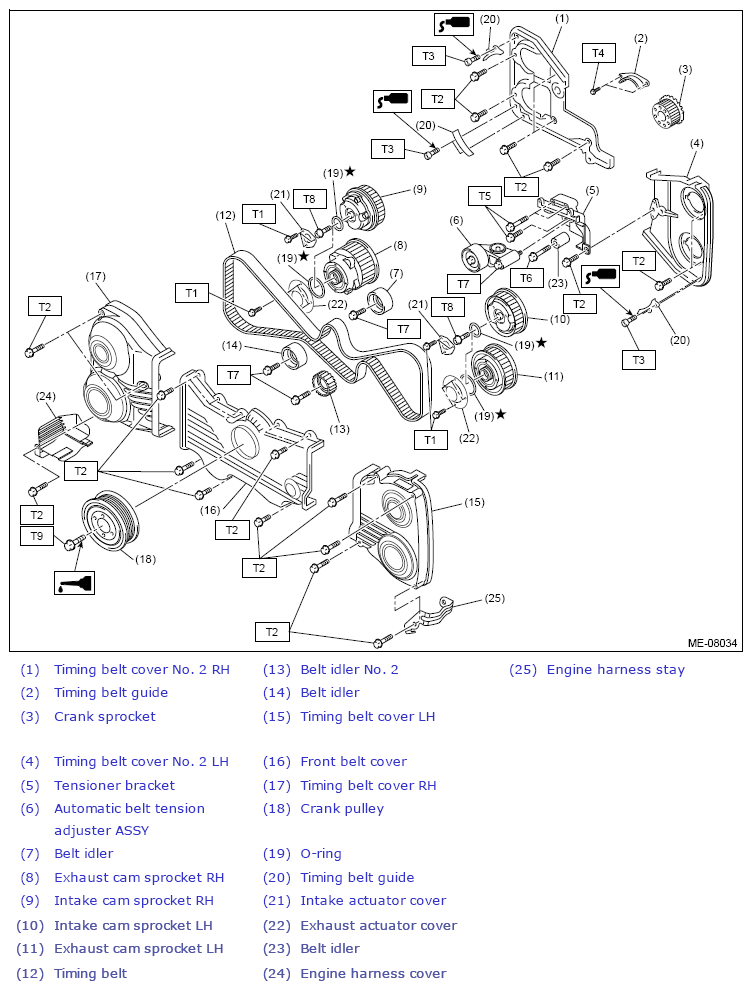

Fig 1: Timing Belt Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3.4 (0.3, 2.5)

T2: 5 (0.5, 3.7)

T3: 6.4 (0.7, 4.7)

T4: 9.75 (1.0, 7.2)

T5: 24.5 (2.5, 18.1)

T6: 25 (2.5, 18.4)

T7: 39 (4.0, 28.8)

T8:  Refer to MECHANICAL(STI)>CAM SPROCKET>INSTALLATION .

T9:  Refer to MECHANICAL(STI)>CRANK PULLEY>INSTALLATION .
