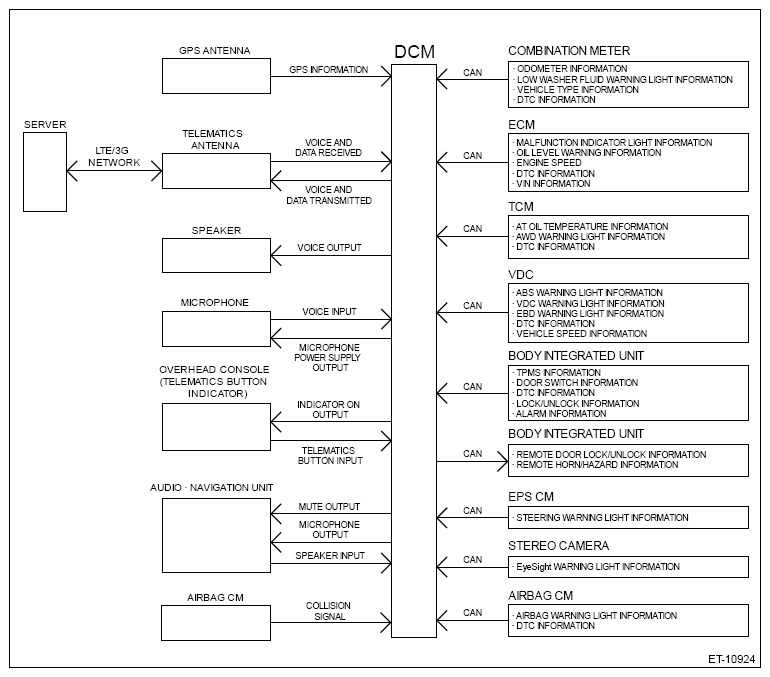

System Block Diagram
Main signals used between DCM and relevant CM
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
