Auto Headlight Beam Leveler Control Module: Removal

WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor, Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the auto headlight beam leveler control module.

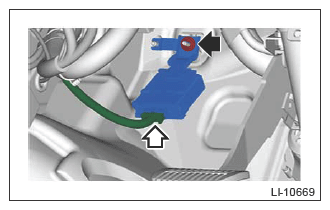

    1. Disconnect the connector.
    2. Remove the nuts, and remove the auto headlight beam leveler control module.
      G13200867Courtesy of SUBARU OF AMERICA, INC.
