Section 19 (Lighting System): General Description: Specification

WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.

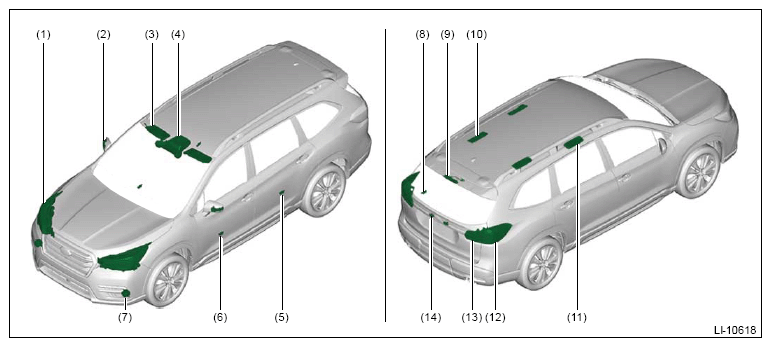

Courtesy of SUBARU OF AMERICA, INC.

No.

Description

Capacity and wattage

Type

(1)

Headlight

Low beam/high beam

13.5 V - 29/32 W (LED)

⁽¹⁾

Front turn signal light

12 V - 28 W

7444NA

Daytime running light/parking light

13.5 V - 22/1.1 W (LED)

⁽¹⁾

Side marker light

13.5 V - 2.7 W (LED)

⁽¹⁾

(2)

Side turn signal light

12 V - 0.4 W (LED)

⁽¹⁾

(3)

Vanity mirror light

14 V - 1.4 W

(4)

Spot map light

12 V - 8 W

(5)

Rear door step light

12 V - 5 W

W5W

(6)

Front door step light

12 V - 5 W

W5W

(7)

Front fog light

12 V - 5.4 W (LED)

⁽¹⁾

(8)

Luggage room light

12 V - 5 W

W5W

(9)

High-mounted stop light

12 V - 1.1 W (LED)

⁽¹⁾

(10)

Reading light (3rd row)

12 V - 8 W

(11)

Reading light (2nd row)

12 V - 8 W

(12)

Rear combination light

Tail light

13.5 V - 0.4 W (LED)

⁽¹⁾

Stop light

13.5 V - 5 W (LED)

⁽¹⁾

Turn signal light

12 V - 21 W

WY21W

Side marker light

12 V - 5 W

W5W

Back-up light

12 V - 16 W

W16W

(13)

Rear finisher

(14)

License plate light

12 V - 5 W

W5W

⁽¹⁾	Non-disassembly type

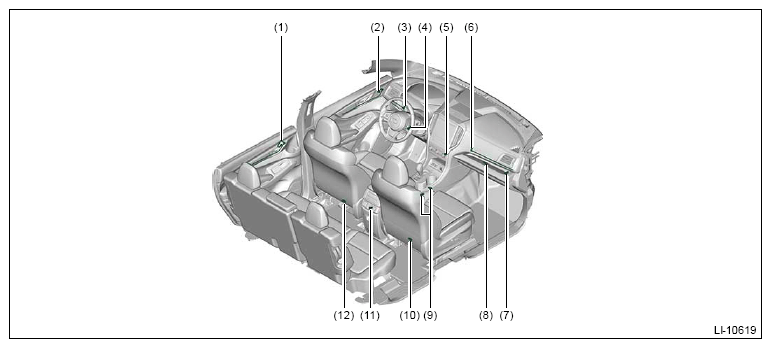

Courtesy of SUBARU OF AMERICA, INC.

No.

Description

Capacity

Type

(1)

Rear door ambient light

12 V (LED)

⁽¹⁾

(2)

Front door ambient light

12 V (LED)

⁽¹⁾

(3)

Instrument panel ambient light (driver's seat)

12 V (LED)

⁽¹⁾

(4)

Front foot light (driver's seat)

12 V (LED)

⁽¹⁾

(5)

Pocket light

12 V (LED)

⁽¹⁾

(6)

Instrument panel ambient light (passenger's seat)

12 V (LED)

⁽¹⁾

(7)

Front foot light (passenger's seat)

12 V (LED)

⁽¹⁾

(8)

Glove box light

12 V (LED)

⁽¹⁾

(9)

Cup holder light

12 V (LED)

⁽¹⁾

(10)

Rear foot light (passenger's seat)

12 V (LED)

⁽¹⁾

(11)

Center foot light

12 V (LED)

⁽¹⁾

(12)

Rear foot light (driver's seat)

12 V (LED)

⁽¹⁾

⁽¹⁾	Non-disassembly type
