Light Control Sensor: Removal

WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

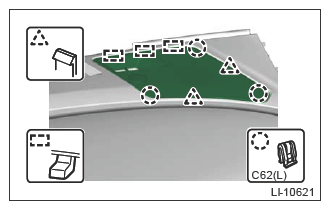

  2. Remove the grille speaker side RH.
    1. Release the clips, hooks and claws.
    2. Disconnect the connector and remove the grille speaker side RH.
      G13200794Courtesy of SUBARU OF AMERICA, INC.

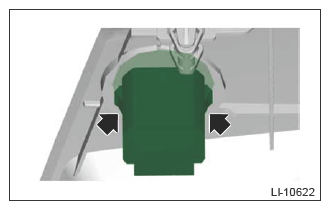

  3. Remove the auto light sensor.
    1. Disconnect the claws and then remove the auto light sensor.
      G13200795Courtesy of SUBARU OF AMERICA, INC.
