Front Disc Brake Assembly: Removal

WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not allow brake fluid to come in contact with the painted surface of the vehicle body. If it does, wash off with water and wipe away completely.
Prepare a container to catch grease or oil, etc. If any grease or oil spills, wipe it off and clean immediately to prevent from penetrating into floor or flowing outside.

Lift up the vehicle, and then remove the front wheels.

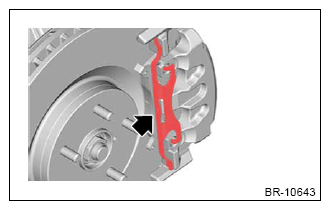

Remove the pad clip.

Courtesy of SUBARU OF AMERICA, INC.

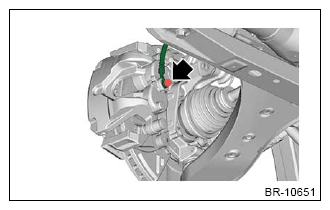

Remove the union bolt and brake hose front.

Courtesy of SUBARU OF AMERICA, INC.

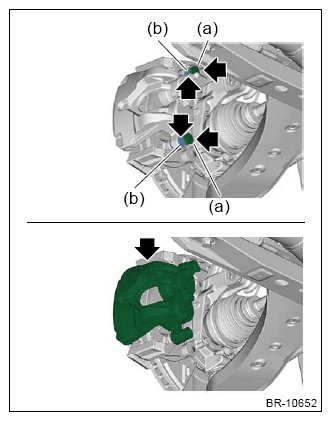

Remove the cap (a) and guide pin front brake (b), and remove the caliper body.
Preparation tool:

Hexagon wrench: 11 mm (0.43 in)

Courtesy of SUBARU OF AMERICA, INC.

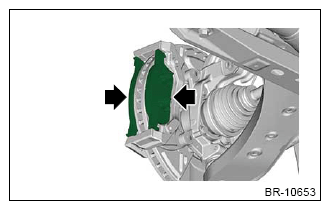

Remove the pad COMPL.

Courtesy of SUBARU OF AMERICA, INC.

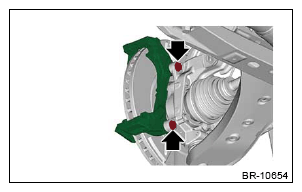

Remove the mounting bolts, and then remove the support front disc brake.

Courtesy of SUBARU OF AMERICA, INC.
