Rear Disc Brake Assembly: Disassembly

WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The piston disc brake cannot be removed from the caliper body.
  • Do not remove the parking brake actuator except for the system error.
  1. Remove mud and foreign matter from the caliper body.
  2. Remove the boot piston.

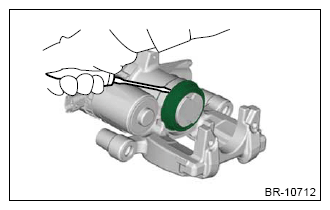

    G13199759Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the pin boot from caliper body.
    G13199760Courtesy of SUBARU OF AMERICA, INC.
