Data Communication Module

WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.

Install the data communication module.

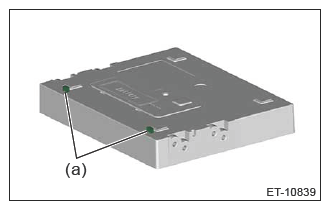

NOTE: Align the positioning pin (a) of the data communication module with the positioning hole of the audio assembly or navigation assembly.

Courtesy of SUBARU OF AMERICA, INC.
Install the backup unit.
Install the audio assembly or navigation assembly.
Install the switch assembly hazard.
Install the grille ventilation assembly center.
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Perform the registration procedure and Bluetooth connection procedure if the data communication module is replaced with a new part.
- Registration procedure: Ref. to ENTERTAINMENT & MONITORING>Telematics System>OPERATION .
- Bluetooth connection procedure (audio without navigation): Ref. to REPAIR CONTENTS>NOTE>BLUETOOTH CONNECTION PROCEDURE BETWEEN HEAD UNIT (AUDIO WITHOUT NAVIGATION) AND SMARTPHONE .
Check the LED illumination status of the telematics button. Ref. to TELEMATICS SYSTEM (DIAGNOSTICS)>Check List for Interview>CHECK>LED ILLUMINATION STATUS LIST .
