Data Communication Module

CAUTION: Before handling the airbag system components, always refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover LWR driver INN. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL>INSIDE .
  3. Remove the cover assembly instrument panel side RH and the panel center UPR assembly. Ref. to AIR CONDITIONER>AIR VENT GRILLE>REMOVAL>CENTER GRILLE .
  4. Remove the center information display assembly. Ref. to ENTERTAINMENT & MONITORING>COCKPIT DISPLAY>REMOVAL .
  5. Remove the data communication module.

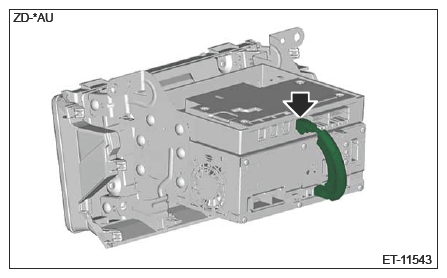

    1. Disconnect the cable CCM connector.
      NOTE: Remove the cable CCM as necessary.
      G16526962Courtesy of SUBARU OF AMERICA, INC.

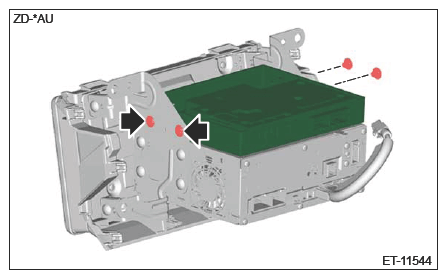

    2. Remove the screws and remove the data communication module.
      G16526963Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the backup battery. Ref. to ENTERTAINMENT & MONITORING>DATA COMMUNICATION MODULE>REMOVAL>BACKUP BATTERY .
      NOTE: Perform this procedure only when required.
