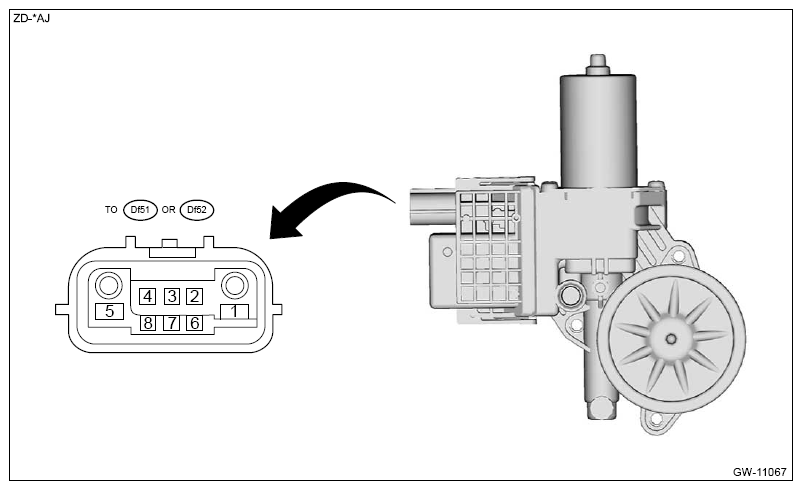

Front Power Window Motor
| Terminal No. | Contents | Measuring condition | Standard |
|---|---|---|---|
| (Df51) or (Df52) No. 1 ←→ Chassis ground | GND | Always | Less than 1 Ω |
| (Df51) or (Df52) No. 2 | - | - | - |
| (Df51) or (Df52) No. 3 ←→ Chassis ground | SW assembly PW SUB LED output (Except for driver's seat) |
Power window switch LED light: ON | Battery voltage |
| Power window switch LED light: OFF | 10 μA or less | ||
| (Df51) or (Df52) No. 4 | SW assembly PW AUTO operation input (Except for driver's seat) | Power window switch AUTO: ON | 1.0 V or less |
| Power window switch AUTO: OFF | Battery voltage | ||
| (Df51) or (Df52) No. 5 ←→ Chassis ground | Power supply for front power window motor | Always | Battery voltage |
| (Df51) or (Df52) No. 6 ←→ Chassis ground | SW assembly PW DOWN operation input | Power window switch DOWN: ON | 1.0 V or less |
| Power window switch DOWN: OFF | Battery voltage | ||
| (Df51) or (Df52) No. 7 | UP and DOWN LIN signal input | - | - |
| (Df51) or (Df52) No. 8 ←→ Chassis ground | SW assembly PW UP operation input | Power window switch UP: ON | 1.0 V or less |
| Power window switch UP: OFF | Battery voltage |
