Heat Shield Cover

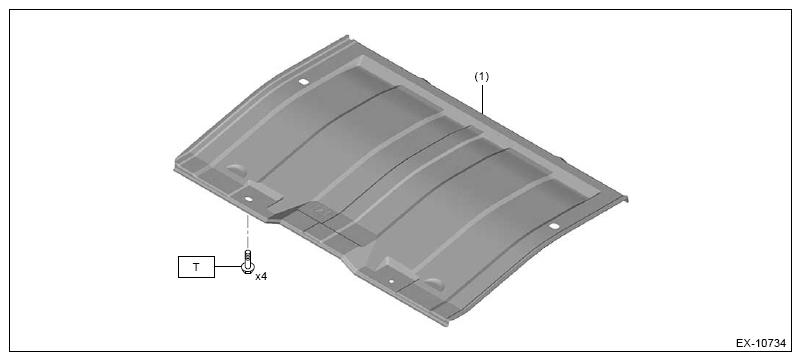

Fig 1: Heat Shield Cover Components Location Map
G16524202Courtesy of SUBARU OF AMERICA, INC.
(1) Exhaust cover

Tightening torque: N.m (kgf-m, ft-lb)

T: 10 (1.0, 7.4)
