Telematics Data Communications Module Reprogramming (WRB-23R)
Publication date: 2023-08-01Reference number: WRB-23R
Supersedes refnos: WRB-23
TELEMATICS DATA COMMUNICATIONS MODULE REPROGRAMMING
SERVICE CAMPAIGN BULLETIN
| SUBARU: | 2022 Forester, WRX; 2022-23 BRZ |
APPLICABILITY
2022MY Forester
2022MY WRX
2022-23MY BRZ
REASON FOR THIS SERVICE PROGRAM
Due to an inaccurate internal timer within the telematics data communications module (DCM), STARLINK remote services from the MySubaru app or MySubaru.com including remote engine start (RES), remote door lock/unlock request, remote horn/lights, and vehicle locator will not operate after 388 days from the date that the DCM was activated.
AFFECTED VEHICLES
The number of U.S. vehicles included in this service program is 114,460 .
| Model Year | Carline | Production date range |
|---|---|---|
| 2022 | Forester | September 23, 2021 - October 4, 2022 |
| 2022 | WRX | January 21, 2022 - November 2, 2022 |
| 2022-2023 | BRZ | September 2, 2021 - October 3, 2022 |
Not all vehicles in the production date range listed above may be included in this service program. Coverage for all affected vehicles must be confirmed by using the Vehicle Coverage Inquiry function on subarunet.com. This information is now available.
Please note that this service program replaces technical service bulletin TSB 15-306-22 , and involves the same procedure described in that bulletin. Based on warranty claim history information at the time of this announcement, VINs showing that repair were not included in this service program.
DESCRIPTION OF THE REPAIR
Subaru retailers will reprogram the telematics DCM at no cost to the customer. Update June 30, 2023: Please be advised that an Over-the-Air (OTA) update for this repair began on June 30, 2023, and will be launched in five weekly phases. Therefore, it is imperative that you check the VIN status for WRB23 coverage prior to performing any inspection, to ensure the WRB23 coverage is still 'Open.' If the status is showing 'Completed' no further action is necessary.
RETAILER RESPONSIBILITY
Any vehicles listed in any recall or campaign that are in retailer stock must be:
- Immediately identified
- Tagged or otherwise marked to prevent their delivery or use prior to repair
- Repaired in accordance with the repair procedures outlined in the bulletin
Retailers are to promptly perform the applicable service procedures, to correct all affected vehicles in their inventory (new, used, demo & SSLP). Additionally, whenever a vehicle subject to this service program is taken into inventory or in for service, necessary steps should be taken to ensure the repair has been made before selling or releasing the vehicle.
OWNER NOTIFICATION
Owners were notified by first class mail in March of 2023, and by Email starting in June of 2023. Retailers have been advised of owner notifications.
As mentioned previously, this service program replaces technical service bulletin 15-306-22, and involves an updated procedure of the one described in that bulletin. Based on warranty claim history information at the time of this announcement, VINs showing that repair were not included in this service program. However, due to claim submission timing and owner notification timing, it is possible that some vehicles that already received the DCM reprogramming have been included in this campaign. Those vehicles should not be updated a second time.
If, in response to the owner notification letter, email, retailer outreach, or push notifications for this service program, a customer informs your personnel that they have already had this repair performed at a retailer or via FOTA, please verify the repair history of the VIN. If it is confirmed that the DCM reprogramming was already performed, please contact the SOA Claims Helpline at 1-866-SUBARU2 (1-866-782-2782) for assistance in closing WRB23 service program coverage for that vehicle if needed..
PAK FILE APPLICABILITY
| MY | Model | File Description | Old Part # | Decryption Keyword | New Software Version |
|---|---|---|---|---|---|
| 2022 | Forester | 86222SJ200.pk2 | 86222SJ200/210 | 82E47A9D | DCM_30.12.71_20220607 |
| 2022 | WRX | 86222VC000.pk2 | 86222VC000/010 | A1D41524 | DCM_30.12.71_20220607 |
PFC FILE APPLICABILITY
| MY | Model | File Description | Old Part # | New Software Version |
|---|---|---|---|---|
| 22-23 | BRZ | 86222CC010.pfc | 86222CC010 | DCM_30.12.71_20220607 |
Detailed information regarding the SSM5-R reprogramming procedures can be found in TSB 14-28-21 .
SERVICE PROCEDURE/INFORMATION

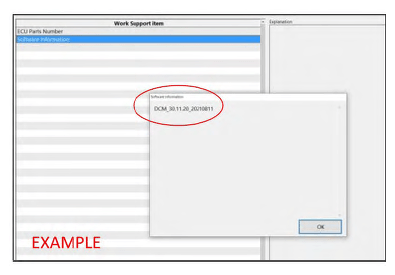

STEP 1: Connect the applicable Subaru Select Monitor (SSM) to the vehicle. Read the Software Information of the DCM. Record this information for confirmation after reprogramming is performed.
STEP 2: Is version "DCM_30.12.71_20220607" found?
YES - The vehicle has the latest software. Continue diagnosis using the applicable Service Manual.
NO - Record and attach the current software status. Proceed to STEP 3 .
STEP 3: Connect the vehicle to a power supply.
Subaru of America, Inc. (SOA) highly recommends utilizing either the Subaru Midtronics DCA8000 Dynamic Diagnostic Charging System or the Subaru Midtronics GR8-1100 Diagnostic Battery Charger to the vehicle in the Power Supply Mode feature anytime a vehicle control module is being reprogrammed. Once the Midtronics charger is connected to the vehicle, if the battery is fully charged, it will take less than three (3) minutes to boot-up the charger, select the Power Supply Mode, and have the battery voltage stabilized and ready for reprogramming.
- For instructions on using the Power Supply Mode, reference the applicable User Manual for the Midtronics DCA-8000 Dynamic Diagnostic Charging System and the Midtronics GR8-1100 Diagnostic Battery Charger on STIS.
- Confirm all electrical loads such as lights, audio, HVAC, seat heaters, and rear defroster are all switched OFF before setting up the charger for Power Supply Mode.
- Select the correct battery type (Enhanced Flooded, Flooded, Gel, AGM or AGM Spiral).
- Input the CCA which matches the vehicle's battery.NOTE: OE and replacement batteries have different CCA ratings. Always confirm the battery's CCA rating before proceeding.
- If using a DCA-8000 Dynamic Diagnostic Charging System, set the power supply voltage to 13.5 Volts.
- DO NOT connect the DST-i or DST-010 until the Power Supply mode function has completed its battery test mode and the Charging Voltage has dropped to and shows a steady 13.5 Volts on the display.
- Once Power Supply Mode reaches a steady 13.5 Volts, connect the DST-i or DST-010 to the OBD connector and proceed with initiating the normal FlashWrite reprogramming process.
- Amperage will fluctuate based upon the vehicle's demand for power.NOTE: If the voltage rises beyond 14 Volts while programming is in process, the procedure will abort. This can indicate a need to test or charge the vehicle battery before any further attempt at programming is made.
- ALWAYS set the power supply voltage to 13.5 Volts when using Power Supply Mode. NEVER turn the ignition switch on when charging at voltages 15 Volts or higher.
REMINDER: If the DCA-8000 or GR8-1100 indicates the vehicle's battery must be charged, charge the battery fully before proceeding to reprogram the vehicle while using the Power Supply Mode.
Unless SSM indicated the module in the vehicle is not applicable for reprogramming or the module is already updated, continue with the reprogramming procedure.
It is possible for FlashWrite2 to display a model type other than the one being reprogrammed. This is not a cause of concern.
STEP 4: Switch the ignition switch to the "ON" position and wait for at least five minutes or more.
STEP 5: Perform DCM reprogramming.
- For Forester and WRX models, reprogram the DCM using the normal FlashWrite procedure.
- For BRZ models, reprogram DCM following the normal SSM5-R procedure. Additional information regarding the SSM5-R reprogramming procedures can be found in TSB 14-28-21 .
STEP 6: Once successful reprogramming is complete, perform the following:
- Switch the ignition to the "OFF" position.
- Disconnect all charging equipment.
- Close the hood.
- Close all doors with the windows down.
STEP 7: Wait approximately three minutes and confirm the green LED located next to the ibutton on the Eyesight Camera cover is NOT illuminated.
STEP 8: Once the LED is confirmed to be OFF, wait an additional five minutes or more.

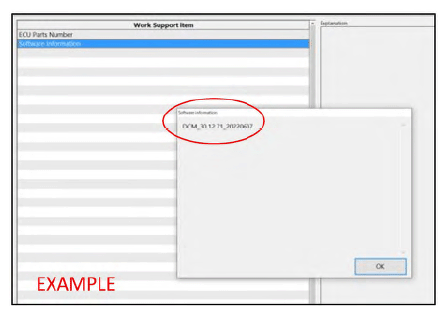

STEP 9: Using the applicable SSM, read the Software Information of the DCM.
STEP 10: Is version "DCM_30.12.71_20220607" found?
YES - Continue to STEP 11 .
NO - Repeat STEP 6 and continue.

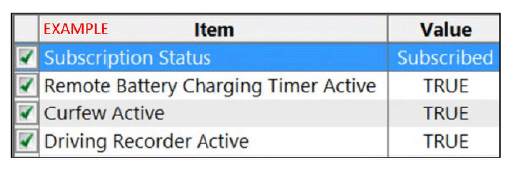

STEP 11: Does the vehicle have an active STARLINK subscription?
YES - Proceed to STEP 12 .
NO - The procedure is COMPLETE.
STEP 12: Perform multiple telematics service requests such as RES, door locks, etc. All service requests should complete without an error message and perform as expected. If the results are unsuccessful, perform the diagnosis procedures outlined in the applicable Service Manual.
VERY IMPORTANT:
This information is applicable to the Subaru Midtronics DCA-8000 Dynamic Diagnostic Charging System and the Subaru Midtronics GR8-1100 Diagnostic Battery Charger ONLY . It does not apply to any other brand/type of "generic" battery charger whatsoever. ONLY the DCA-8000 and the GR8-1100 and their Power Supply Mode feature have been tested and approved by SOA.
CLAIM REIMBURSEMENT AND ENTRY PROCEDURES
Credit to perform this recall will be based on properly completed repair order information. Retailers may submit claims through Subarunet.com.
| Labor Description | Labor Operation # | Labor Time | Fail Code |
|---|---|---|---|
| TELEMATICS DCM ID CHECK | B167-900 | 0.2 | WRB-23 |
| TELEMATICS DCM REPROGRAMING | C167-908 | 0.4 |
SERVICE PROGRAM IDENTIFICATION LABEL
Type or print the necessary information on a Campaign Identification Label. The completed label should be attached to the vehicle's upper radiator support. Additional labels are available through normal parts ordering channels. The part number is MSA6P1302 , which comes as one sheet of 20 labels.
| Part Number | Applicability | Description | Order Quantity |
|---|---|---|---|
| MSA6P1302 | All models | Campaign Completion Labels (contains one sheet of 20 labels) | 1 |
IMPORTANT REMINDERS:
- SOA strongly discourages the printing and/or local storage of service information as previously released information and electronic publications may be updated at any time.
- Always check for any open recalls or campaigns anytime a vehicle is in for servicing.
- Always refer to STIS for the latest service information before performing any repairs.
