Cruise Control Command Switch: Inspection

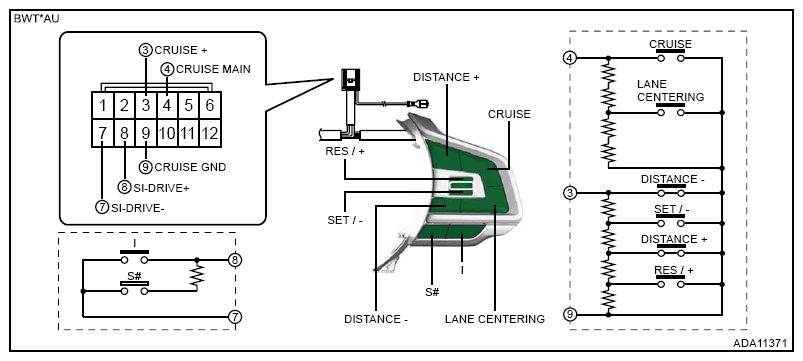

- Measure the resistance between connector terminals.
Terminal No. Inspection conditions Standard 3 - 9 DISTANCE-SET/-DISTANCE+RES/+ All OFF Approx. 4, 020 Ω DISTANCE- ON Less than 1 Ω SET/- ON Approx. 250 Ω DISTANCE+ ON Approx. 680 Ω RES/+ ON Approx. 1, 470 Ω 4 - 9 CRUISE LANE CENTERING All OFF Approx. 4, 020 Ω CRUISE ON Less than 1 Ω LANE CENTERING ON Approx. 680 Ω 8 - 7 I S# All OFF 3 MΩ or more I ON Less than 1 Ω S# ON Approx. 1, 800 Ω - Apply battery voltage between the connector terminals to check lighting condition of illumination inside the switch.CAUTION:
When applying battery voltage, do not mix up the positive (+) side and the negative (-) side.
CAUTION:Incorrect polarity connection may cause LED damage inside the switch.
Terminal No. Inspection conditions Specification 10 (+) - 11 (-) Apply battery voltage. Light ON - Replace the EyeSight steering switch if it is found defective.
