Wilderness Model

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE > BATTERY .
  2. Remove the bumper face front. Ref. to BUMPER FACE .
  3. Remove the front view camera assembly.
    CAUTION:

    Do not drop or apply any impact to the front view camera assembly because it is a precision equipment.

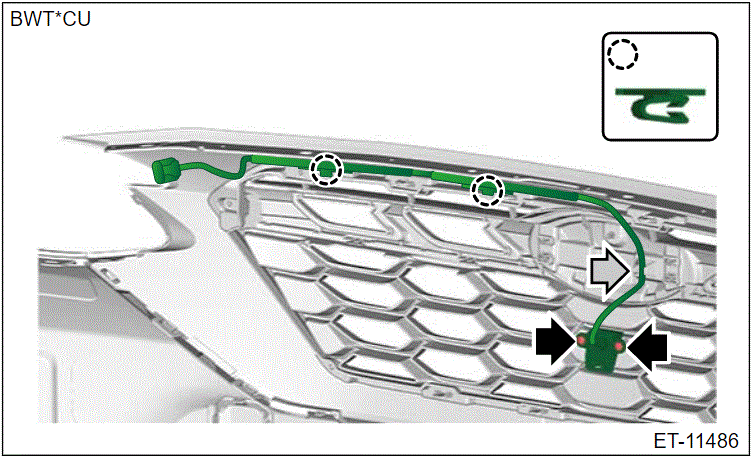

    1. Remove the cable clamps.
    2. Remove the screws and remove the front view camera assembly from the front grille assembly clamp.
      G00608721Courtesy of SUBARU OF AMERICA, INC.
