Wilderness Model

CAUTION:

Before installing the bumper face, match the claws on the bumper bracket with the engaging position of flange section on the bumper face side. If the engaging position is not correct, the flange section may be broken or the clearance between fender panel and bumper face may not be uniform.

NOTE:

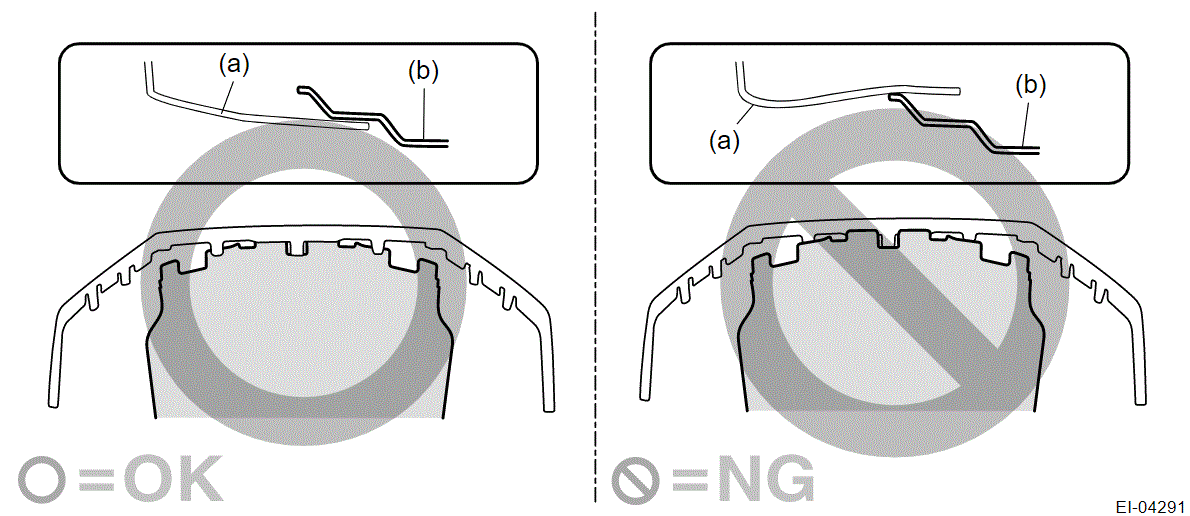

Install the under cover so that the under cover front end (b) comes inside of the bumper face (a).

Courtesy of SUBARU OF AMERICA, INC.

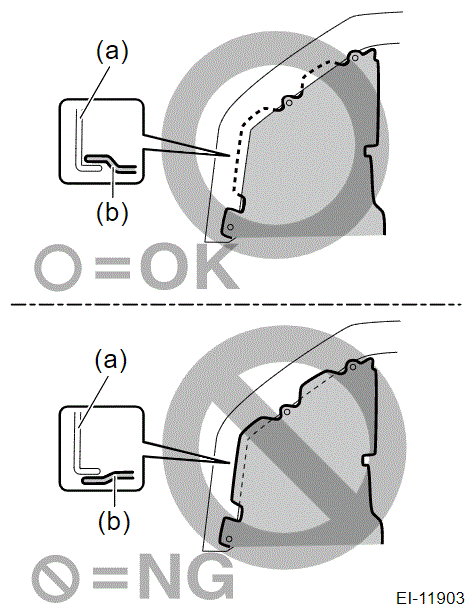

Install the mud guard so that the front end of the mud guard (b), except for the clip fixing point, comes inside the bumper face (a).

Courtesy of SUBARU OF AMERICA, INC.

Install the fog light assembly front.
Tightening torque:

7.5 N.m (0.8kgf-m, 5.5ft-lb)
Install the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>INSTALLATION
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE > BATTERY
Adjust the fog light beam. Ref. to LIGHTING SYSTEM>FRONT FOG LIGHT ASSEMBLY>ADJUSTMENT > FOG LIGHT AIMING
