Push Button Ignition Switch: Removal

CAUTION:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .

Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
Remove the knee airbag module. Ref. to AIRBAG SYSTEM>KNEE AIRBAG MODULE>REMOVAL .
Remove the push button start switch.

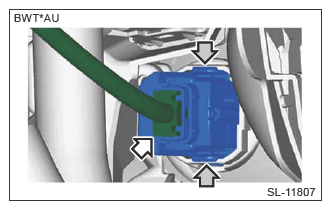

1. Disconnect the connector.
2. Release the claws, and remove the push button start switch.
Courtesy of SUBARU OF AMERICA, INC.
