Relay And Fuse: Removal

CAUTION:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to  AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION  .

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE > BATTERY .
  2. Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .

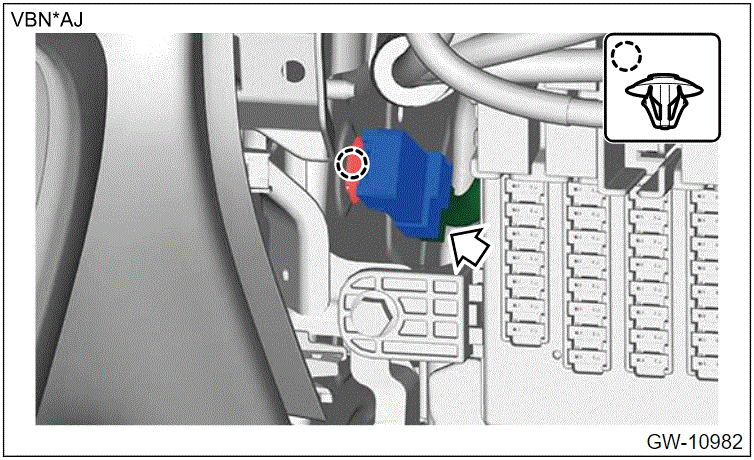

  3. Remove the circuit breaker.
    1. Disconnect the connector.
    2. Release the clip, and remove the circuit breaker.
      CAUTION:

      Be careful not to apply excessive force when pulling the clip, as the clip may become damaged.

      G00608701Courtesy of SUBARU OF AMERICA, INC.
