Check Power Supply And Ground Line Of Engine Control Module (ECM)

NOTE:

After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>BASIC DIAGNOSTIC PROCEDURE>PROCEDURE

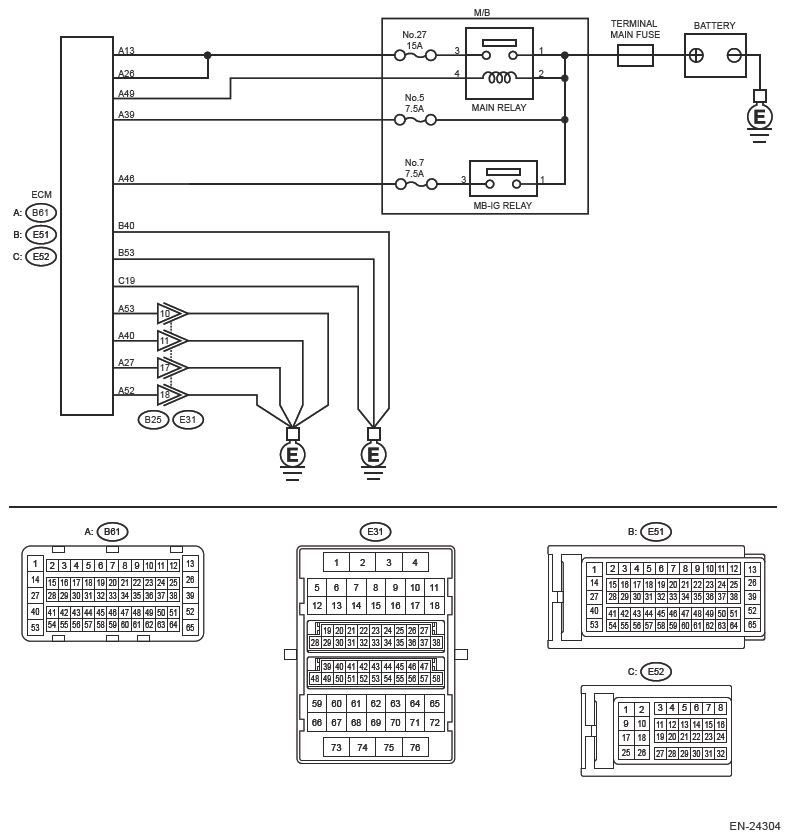

Wiring diagram:

Engine Electrical System Ref. to WIRING SYSTEM>ENGINE ELECTRICAL SYSTEM>WIRING DIAGRAM .

Courtesy of SUBARU OF AMERICA, INC.

CAUTION:

Use the check board when measuring the ECM terminal voltage and resistance. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>GENERAL DESCRIPTION>PREPARATION TOOL>HOW TO USE CHECK BOARD .

CHECK FOR MALFUNCTION STATUS .
Check for the generating condition of starting failure.

Is this a starting failure during Auto Start Stop?

Yes: Check the Auto Start Stop. Ref. to AUTO START STOP (DIAGNOSTICS)>BASIC DIAGNOSTIC PROCEDURE .

No: Go to 2 .
CHECK MAIN RELAY .
1. Turn the ignition switch to OFF.
2. Remove the main relay.
3. Check the main relay. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>MAIN RELAY .
Is the check result OK?

Yes: Go to 3 .

No: Replace the main relay. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>MAIN RELAY .
CHECK GROUND CIRCUIT FOR ECM (OPEN CIRCUIT) .
1. Disconnect the connector from ECM.
2. Measure the resistance of harness between ECM connector and engine ground.
  Connector and terminal

  (B61) No. 27 - Engine ground:

  (B61) No. 40 - Engine ground:

  (B61) No. 52 - Engine ground:

  (B61) No. 53 - Engine ground:

  (E51) No. 40 - Engine ground:

  (E51) No. 53 - Engine ground:

  (E52) No. 19 - Engine ground:
Is the resistance less than 5 Ω?

Yes: Go to 4 .

No: Repair the following item.
- Open circuit of harness between ECM connector and engine ground
- Poor contact of coupling connector
CHECK INPUT VOLTAGE OF ECM (SHORT TO GROUND) .
1. Turn the ignition switch to ON.
2. Measure the voltage between ECM connector and engine ground.
  Connector and terminal

  (B61) No. 39 (+) - Engine ground (-):

  (B61) No. 46 (+) - Engine ground (-):
Is the voltage 10 V or more?

Yes: Go to 5 .

No: Repair the open or ground short in the harness of power supply circuit.
CHECK M/B (MAIN RELAY) INPUT VOLTAGE .
Measure the voltage between M/B (main relay) terminal and engine ground.

Terminals

No. 1 (+) - Engine ground (-):

No. 2 (+) - Engine ground (-):

Is the voltage 10 V or more?

Yes: Go to 6 .

No: Repair the open or ground short in the harness of power supply circuit.
CHECK INPUT VOLTAGE OF ECM .
1. Turn the ignition switch to OFF.
2. Install the main relay.
3. Measure the voltage between ECM connector and engine ground.
  Connector and terminal

  (B61) No. 49 (+) - Engine ground (-):
Is the voltage 10 V or more?

Yes: Go to 7 .

No: Repair the open circuit of harness between ECM connector and M/B (main relay) terminal.
CHECK HARNESS BETWEEN ECM AND M/B (MAIN RELAY) .
1. Connect the connector to ECM.
2. Turn the ignition switch to ON.
3. Measure the voltage between ECM connector and engine ground.
  Connector and terminal

  (B61) No. 13 (+) - Engine ground (-):

  (B61) No. 26 (+) - Engine ground (-):
Is the voltage 10 V or more?

Yes: Check the starter motor circuit. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>DIAGNOSTICS WITH PHENOMENON>STARTER MOTOR CIRCUIT .

No: Repair the following item.
- Open circuit of harness between ECM connector and M/B (main relay)
- Poor contact of M/B (main relay)
- Blown out of fuse
- Poor contact of ECM connector

NOTE:

After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>BASIC DIAGNOSTIC PROCEDURE>PROCEDURE .
