Control Valve Body: Installation

Install new O-rings to the pressure pipe No. 1, pressure pipe No. 2 and pressure pipe No. 3.
NOTE:
Apply CVTF to the O-rings.

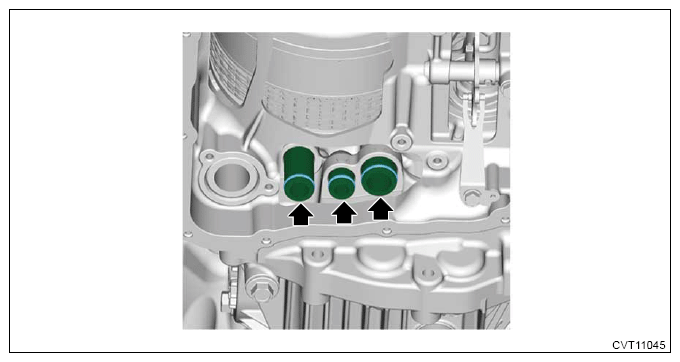

Install the pressure pipe No. 1, pressure pipe No. 2 and pressure pipe No. 3 to the transmission case.

Courtesy of SUBARU OF AMERICA, INC.
Install the control valve body.
NOTE:
- Engage the manual valve to the manual plate.

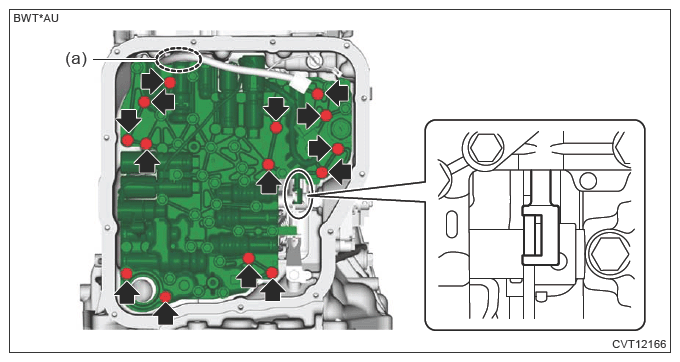

- Lead the transmission harness through from the point indicated by dashed line (a) in the figure in order to prevent it from being caught.
Tightening torque:

9 N.m (0.9 kgf-m, 6.6 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Connect the connector.
Install the oil pan and oil strainer. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>OIL PAN>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Refill CVTF to adjust the CVTF amount. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CVTF>INSPECTION .
Perform "Clear AT learning value" and "AT learning mode" using the Subaru Select Monitor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>AT LEARNING .
