Oil Pan

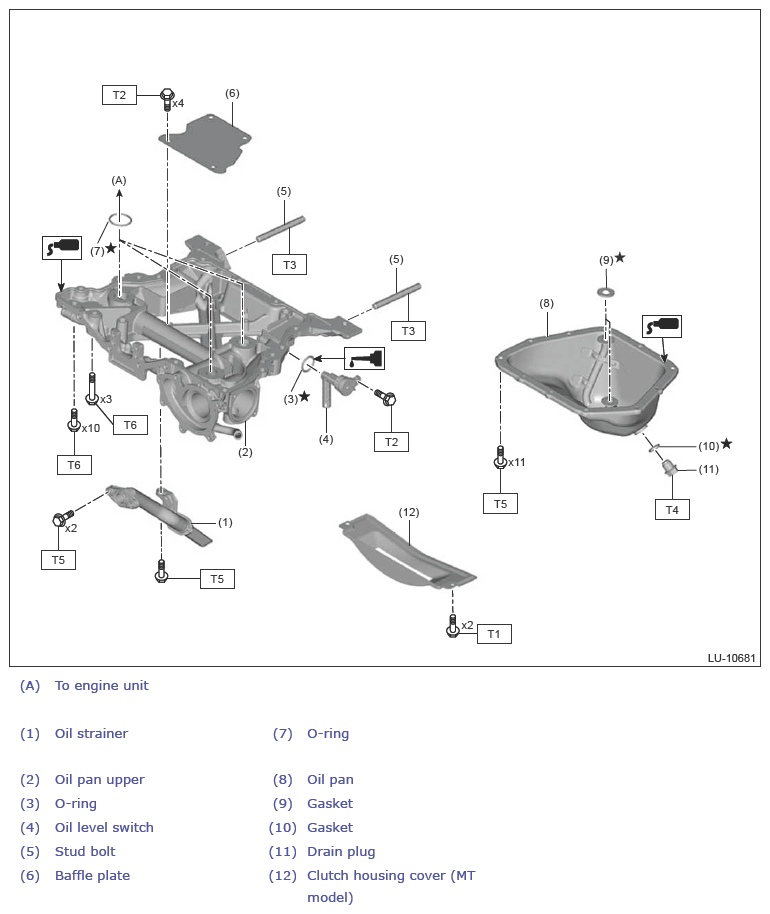

Fig 1: Oil Pan Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.5, 3.7)

T2: 6.4 (0.7, 4.7)

T3: 10 (1.0, 7.4)

T4: 41.7 (4.3, 30.8)

T5:  Ref. to LUBRICATION (H4DOTC)>OIL PAN>INSTALLATION>OIL PAN .

T6:  Ref. to LUBRICATION (H4DOTC)>OIL PAN>INSTALLATION>OIL PAN UPPER .
