Control Valve Body

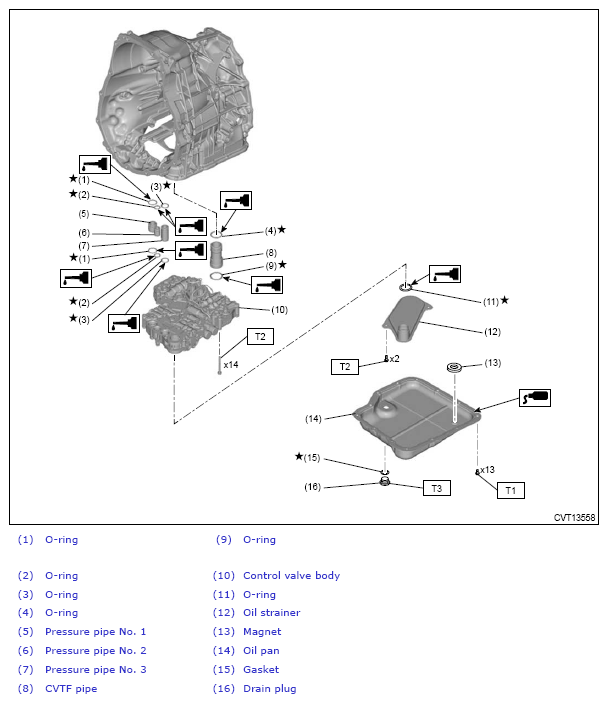

Fig 1: Control Valve Body Components With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.2 (0.7, 5.3)

T2: 9 (0.9, 6.6)

T3: 39.2 (4.0, 28.9)
