Intermediate Case: Disassembly

  1. Remove the parking support.
    G14611315Courtesy of SUBARU OF AMERICA, INC.

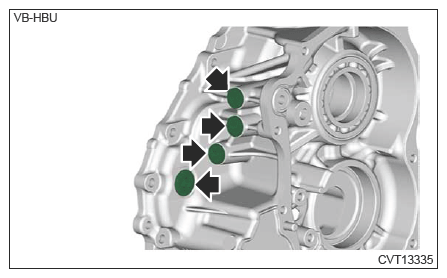

  2. Remove all plugs.
    G14611316Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the reverse brake. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REVERSE BRAKE>DISASSEMBLY
