Standard Damper Model

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  3. Remove the sensor sub assembly front.
    CAUTION:
    • Be careful not to damage the sensor.
    • Do not apply excessive force to the sensor harness.

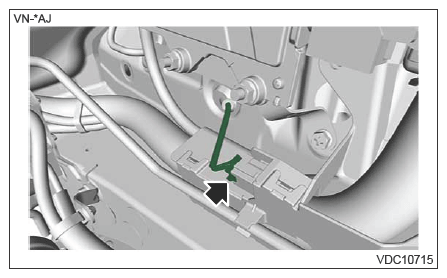

    1. Disconnect the connector of the sensor sub assembly front in the engine compartment.
      G14602121Courtesy of SUBARU OF AMERICA, INC.

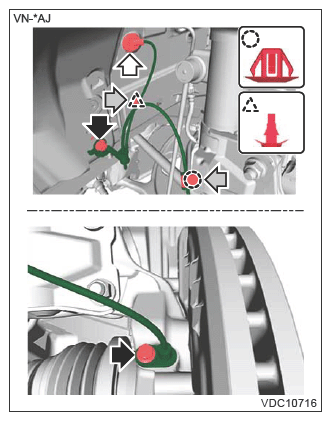

    2. Remove the bolts, the harness clip, and the grommet, and then remove the sensor sub assembly front.
G14602122Courtesy of SUBARU OF AMERICA, INC.
