Electronically-Controlled Damper Model

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the rear wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  3. Remove the electric damper harness ABS assembly rear.
    CAUTION:
    • Be careful not to damage the sensor.
    • Do not apply excessive force to the sensor harness.

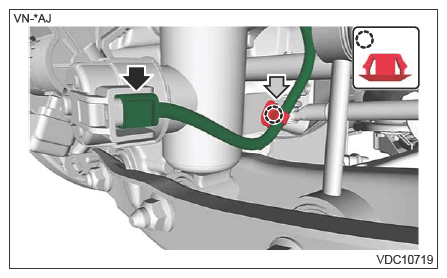

    1. Remove the connector and harness clip from the strut assembly.
      G14601819Courtesy of SUBARU OF AMERICA, INC.

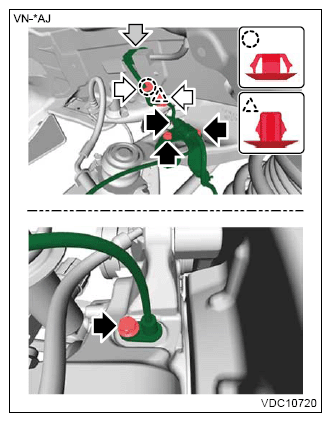

    2. Remove the bolt, connector and harness clip, and remove the electric damper harness ABS assembly rear.
    G14602131Courtesy of SUBARU OF AMERICA, INC.
