Clutch Assembly

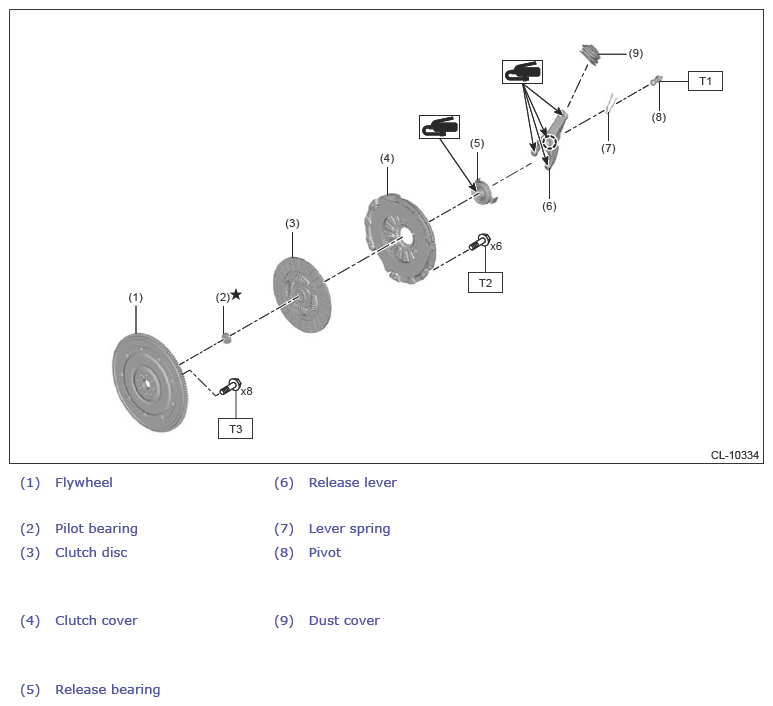

Fig 1: Clutch Assembly Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.8)

T2:  Ref. to CLUTCH SYSTEM>CLUTCH DISC AND COVER>INSTALLATION .

T3:  Ref. to CLUTCH SYSTEM>FLYWHEEL>INSTALLATION .
