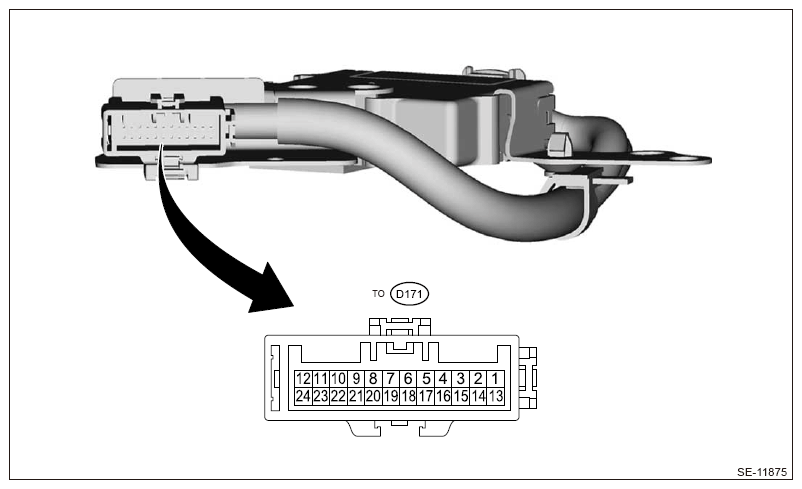

Outer Mirror Control Module RH
| Terminal No. | Contents | Measuring condition | Standard | Note |
|---|---|---|---|---|
| (D171) No. 1 ←→ Chassis ground | - | - | - | - |
| (D171) No. 2 ←→ Chassis ground | Memory sensor power supply | Always | 5.0 V | - |
| (D171) No. 3 ←→ Chassis ground | Memory sensor input (horizontal) | Always | 0 -5.0 V | Changes when the right side mirror surface is operated in the left/right direction Left direction (inward): 0 V - Right direction (outward): 5.0 V |
| (D171) No. 4 ←→ Chassis ground | Memory sensor input (vertical) | Always | 0 -5.0 V | Changes when the mirror surface is operated in the up/down direction Up direction: 0 V - Down direction: 5.0 V |
| (D171) No. 5 ←→ Chassis ground | - | - | - | - |
| (D171) No. 6 ←→ Chassis ground | GND | Always | 1 Ω or less | - |
| (D171) No. 7 ←→ Chassis ground | CAN communication Hi | - | Cannot be measured | - |
| (D171) No. 8 ←→ Chassis ground | CAN communication Low | - | Cannot be measured | - |
| (D171) No. 9 ←→ Chassis ground | - | - | - | - |
| (D171) No. 10 ←→ Chassis ground | Mirror surface motor output (vertical) | When the mirror surface is operated (up) | 1.0 V or less | - |
| When the mirror surface is operated (down) | (+B voltage) -0.6 V or more | - | ||
| When the mirror surface is operated (right) | 10 kΩ or more | - | ||
| When the mirror surface is operated (left) | 10 kΩ or more | - | ||
| (D171) No. 11 ←→ Chassis ground | Mirror surface motor output (horizontal) | When the mirror surface is operated (up) | 10 kΩ or more | - |
| When the mirror surface is operated (down) | 10 kΩ or more | - | ||
| When the mirror surface is operated (right) | 1.0 V or less | - | ||
| When the mirror surface is operated (left) | (+B voltage) -0.6 V or more | - | ||
| (D171) No. 12 ←→ Chassis ground | Mirror surface motor output (common) | When the mirror surface is operated (up) | (+B voltage) -0.6 V or more | - |
| When the mirror surface is operated (down) | 1.0 V or less | - | ||
| When the mirror surface is operated (right) | (+B voltage) -0.6 V or more | - | ||
| When the mirror surface is operated (left) | 1.0 V or less | - | ||
| (D171) No. 13 ←→ Chassis ground | - | - | - | - |
| (D171) No. 14 ←→ Chassis ground | - | - | - | - |
| (D171) No. 15 ←→ Chassis ground | - | - | - | - |
| (D171) No. 16 ←→ Chassis ground | - | - | - | - |
| (D171) No. 17 ←→ Chassis ground | Memory sensor GND | Always | 1 Ω or less | - |
| (D171) No. 18 ←→ Chassis ground | ECM power supply | Always | 9.0 - 16 V | - |
| (D171) No. 19 ←→ Chassis ground | IGN SW input | IG ON | 9.0 - 16 V | - |
| (D171) No. 20 ←→ Chassis ground | ACC SW input | ACC ON | 9.0 - 16 V | - |
| (D171) No. 21 ←→ Chassis ground | - | - | - | - |
| (D171) No. 22 ←→ Chassis ground | Heater output | Defogger ON | (+B voltage) -0.8 V or more | - |
| (D171) No. 23 ←→ Chassis ground | Electric retraction motor output (-) | During the extension operation by the electric retraction system | (+B voltage) -1.1 V or more | - |
| During the retracting operation by the electric retraction system | 0.9 V or less | - | ||
| (D171) No. 24 ←→ Chassis ground | Electric retraction motor output (+) | During the extension operation by the electric retraction system | 0.9 V or less | - |
| During the retracting operation by the electric retraction system | (+B voltage) -1.1 V or more | - |
