Battery Sensor

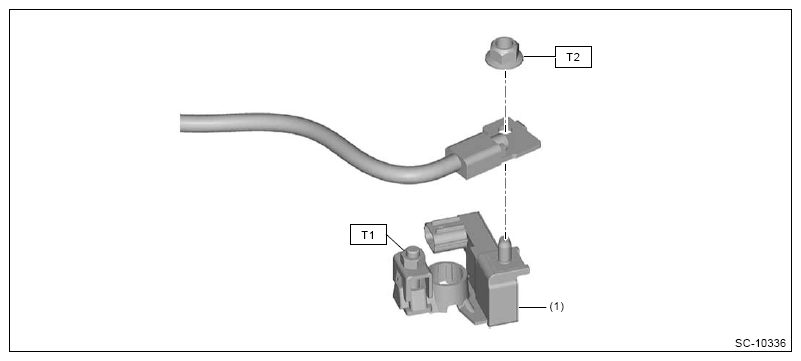

Fig 1: Battery Sensor Components Location
Courtesy of SUBARU OF AMERICA, INC.
(1)
Battery sensor
Tightening torque: N.m (kgf-m, ft-lb)
T1: 3.4 (0.3, 2.5)
T2: 7.5 (0.8, 5.5)
Courtesy of SUBARU OF AMERICA, INC.
