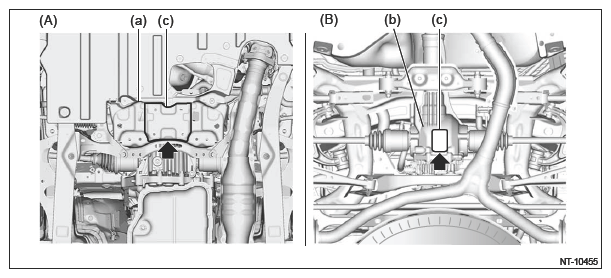

Jack-Up Point (When Using A Garage Jack)
CAUTION:
If jacking up the front side of the vehicle, make sure that the jack is attached at the center of the crossmember support front, not at the sides.
 Courtesy of SUBARU OF AMERICA, INC.
|
| (A) |
Front |
| (B) |
Rear |
| (a) |
Crossmember support front |
| (b) |
Rear differential |
| (c) |
Jack-up point |
