Central Gateway Control Module: Removal

CAUTION: Before handling the airbag system components, always refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the pocket COMPL. Ref. to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL>GLOVE BOX LID .
  3. Remove the boot assembly parking brake and the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
  4. Remove the cover center side. Ref. to EXTERIOR/INTERIOR TRIM>CENTER CONSOLE>REMOVAL .
  5. Remove the cover LWR driver INN. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL>INSIDE .
  6. Remove the cover assembly instrument panel side RH and the panel center UPR assembly. Ref. to AIR CONDITIONER>AIR VENT GRILLE>REMOVAL>CENTER GRILLE .
  7. Remove the center information display assembly. Ref. to ENTERTAINMENT & MONITORING>COCKPIT DISPLAY>REMOVAL .
  8. Remove the heater control assembly. Ref. to AIR CONDITIONER>CONTROL PANEL>REMOVAL .
  9. Remove the panel instrument passenger. Ref. to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL>BACK PANEL .
  10. Remove the sound control assembly. Ref. to ACTIVE SOUND CONTROL>ACTIVE SOUND CONTROL CONTROL MODULE>REMOVAL .
  11. Remove the keyless access Control Module. Ref. to SECURITY AND LOCKS>KEYLESS ACCESS CONTROL MODULE>REMOVAL .
  12. Remove the central gateway Control Module.
CAUTION: Be careful to keep water and other foreign materials away from the central gateway Control Module and EyeSight security gateway Control Module terminals.
  1. Disconnect the connector.
  2. Remove the bolts, and then remove the central gateway Control Module.

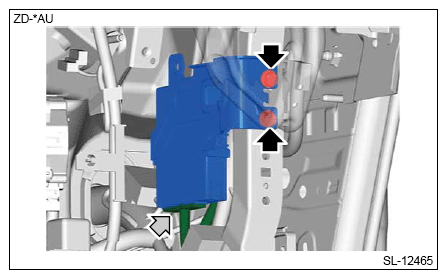

    • Models without EyeSight
      G16527203Courtesy of SUBARU OF AMERICA, INC.

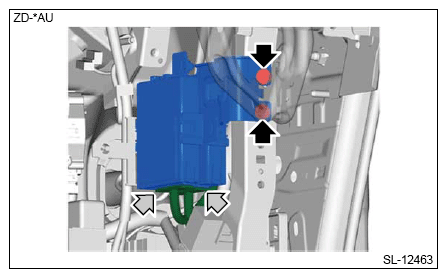

    • Models with EyeSight
    G16527204Courtesy of SUBARU OF AMERICA, INC.

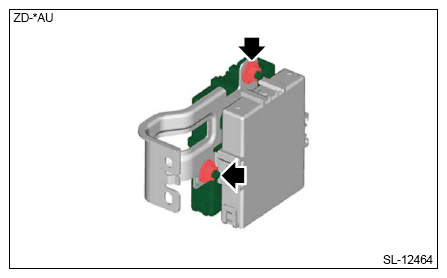

  3. Remove the nuts and washers, and then remove the EyeSight security gateway Control Module from the central gateway Control Module. (Models with EyeSight)
G16527205Courtesy of SUBARU OF AMERICA, INC.
