Electrical Specification

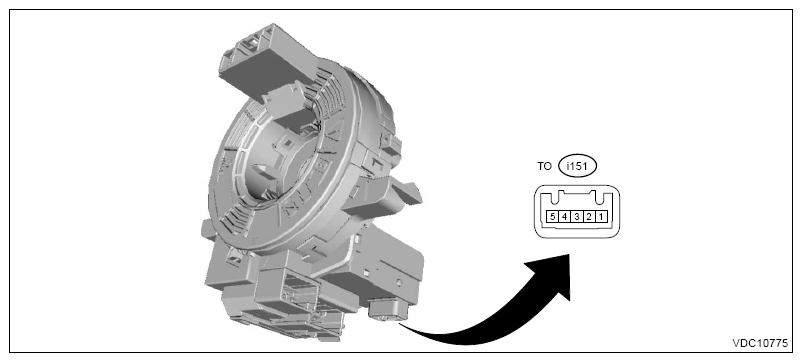

G16528135Courtesy of SUBARU OF AMERICA, INC.
Connector No. Terminal No. Contents Measuring Condition Standard
I151 1 Ground - -
I151 2 Chassis Can_L Signal - -
I151 3 Chassis Can_H Signal - -
I151 4 Ignition Power Supply Ignition Switch: On 9 - 16 V
I151 5 - - -
