Cruise Control Command Switch: Removal

CAUTION: Before handling the airbag system components, always refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Set the steering wheel to the straight-ahead position.
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the driver's airbag module. Ref. to AIRBAG SYSTEM>DRIVER'S AIRBAG MODULE>REMOVAL .
  4. Remove the switch assembly cruise.

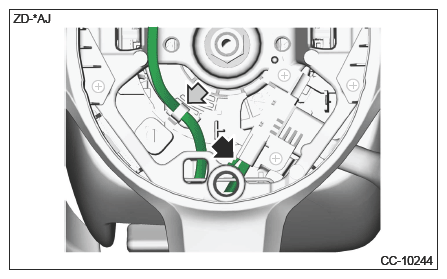

    1. Remove the harness from the clamp of the cover steering wheel LWR, and then disconnect the connector.
      G16527412Courtesy of SUBARU OF AMERICA, INC.

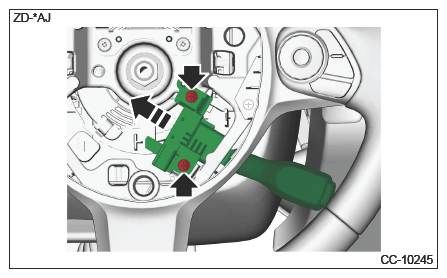

    2. Remove the screws, and remove the switch assembly cruise as shown in the figure.
G16527413Courtesy of SUBARU OF AMERICA, INC.
